CAN Simulator

sdasda

Introduction

A CAN Simulator is a testing tool used to simulate Controller Area Network (CAN) communication. CAN is a widely used communication protocol in automotive systems, industrial automation, and embedded electronics. It allows different electronic devices to communicate with each other efficiently.

A CAN simulator enables engineers to generate CAN messages and test how electronic control units (ECUs) and other devices respond to communication signals.

How CAN Simulation Works

The simulator creates virtual CAN messages and sends them to connected devices or software systems. Engineers can configure message parameters such as identifier, data length, and signal values.

This allows developers to test network communication and ensure that devices respond correctly to different signals.

Key Features

CAN simulators offer features such as message generation, network monitoring, and real-time data analysis. Engineers can simulate multiple nodes communicating on the same CAN network.

Some simulators also provide graphical interfaces that make configuration and testing easier.

Applications

CAN simulators are widely used in automotive electronics testing, industrial automation, and embedded system development. Engineers use them to test electronic control units, communication modules, and sensor networks.

They are also useful for diagnosing communication issues and validating network performance.

dssda

Advantages

Using a CAN simulator helps engineers test communication systems without requiring a full physical network setup. This simplifies debugging and speeds up product development.

It also reduces testing costs and improves the reliability of embedded and automotive communication systems.

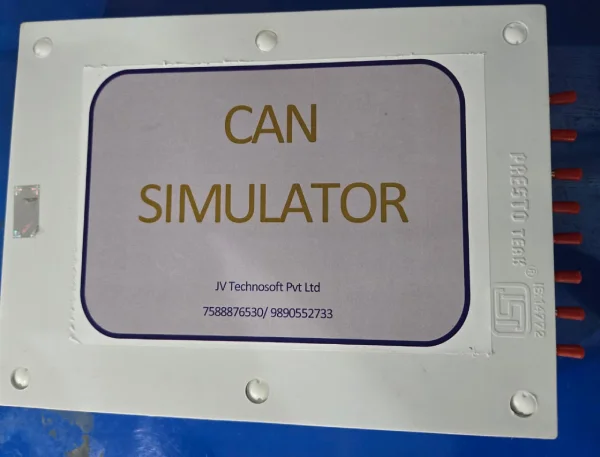

Hardware Details

  1. This is an electronics device, hence includes electronics assembly, electronics components, power source and wiring.
  2. Its operative voltage range is 8V to 25V. As per load we can provide supply voltage to device.
  3. The DC power jack provided with device used to supply power.
  4. Once desired power supplied the power indication LED will glow, which is red colored.
  5. Near to the DC power jack, DB9 pin male socket is present, which is CAN connector. Use load side CANH and CANL wires to prepare DB9 female connector for connecting at this pin.
  6. In this DB9 pin, 2nd pin is CANL and 7th is CANH. Accordingly one can make load side connector for CAN connections. As shown in below figure.
  7. Near to this one more DB9 pin Male connector presents, which is a serial port for serial communication with any external controller devices, such as PLC, PC based software, etc.
  8. At center of box on wall side, micro usb female connector present. This is a programming port, to program the CAN controller for different applications.
  9. To the opposite wall of power supply jack and CAN DB9 connector, 8 switches are mounted for purpose.
  10. These are toggle switches, used to send different CAN messages for every switch. Hence in total we can configure 8 different CAN messages or signals.
  11. Other than these external hardware components, one Electronics Controller PCB fixed inside box which is actually controlling all external hardware and switched. This board has a program which is used to drive all CAN related activities.

Technical Details

  1. This CAN Simulator Box operative from 9V to 25V DC power supply.
  2. It can address up to maximum number of CAN based devices.
  3. It can be configured for 9V to 25V DC output which is relay based.
  4. Maximum 8 outputs can be configured. Just need to add number of relay hardware on PCB board.
  5. To communicate over serial communication with external devices, program need to be modify.
  6. To program this box, basic and easy installation steps need to follow on PC.
  7. Instead of toggle switches we can control the inputs by some external device like PLC or controller, for this need to connect wires accordingly inside the box on PCB.
  8. The CAN frames should be prepared wisely. Each frame should be in desired format, whatever format necessary for load object.
  9. The 120 Ohm resistor is already inside the circuit, hence no need to connect external one. Still if connected, there will be no harm.
  10. CANL and CANH wires are as per PEAK USB CAN device, pin 2 is CANL and pin 7 is CANH of DB9 pin connector.
  11. The controller used is ESP32D and CAN transceiver used is TJA1050. Programming for this device is in ARDUINO IDE.
  12. Once program flashed/upload remove micro usb cable.
