CA Area Scan Camera Series

As an advanced series, The CA series focuses on low to medium resolution and high image quality. The leading Sony sensor is of excellent imaging quality, and the pixel size of the Onsemi sensor series is consistent so it can achieve an upgraded view under the same pixel accuracy without adjusting the imaging distance of the lens.

Global shutter, dynamic imaging capability

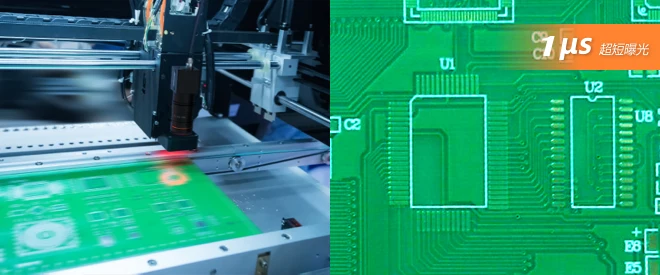

This series is mainly equipped with global shutter sensor, which can easily capture high-speed dynamic images and cover the needs in most applications; some models can support ultra- short exposures of 1μs, suitable for flying shooting and other industries.

PRODUCT LIST

Product model	Sensor model	Resolution	Max. frame rate	Data interface	Certification	Product status
MV-CA003-20GC	PYTHON300	672 × 512	336.0 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA003-21UC	PYTHON300	640 × 480	814.5 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA004-10GM	IMX287	720 × 540	312.9 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA004-10GC	IMX287	720 × 540	312.9 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA004-10UM	IMX287	720 × 540	526.5 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA004-10UC	IMX287	720 × 540	526.5 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA013-20GM	PYTHON1300	1280 × 1024	90.0 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA013-20GC	PYTHON1300	1280 × 1024	90.0 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA013-21UM	PYTHON1300	1280 × 1024	210.0 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA013-A0GM		1280 × 1024	92.8 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA013-A0GC		1280 × 1024	92.8 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA013-A0UM		1280 × 1024	201.0 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA013-A0UC		1280 × 1024	201.0 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA016-10GM	IMX273	1440 × 1080	78.2 fps	GigE	CE, RoHS	Delisting Preparation
MV-CA016-10GC	IMX273	1440 × 1080	78.2 fps	GigE	CE, RoHS	Delisting Preparation
MV-CA016-10UM	IMX273	1440 × 1080	249.1 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA016-10UC	IMX273	1440 × 1080	249.1 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA017-10GM	IMX432	1608 × 1104	68.5 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA017-10GC	IMX432	1608 × 1104	68.5 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA020-10GM	IMX430	1624 × 1240	60.0 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA020-10GC	IMX430	1624 × 1240	60.0 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA020-10UM	IMX430	1624 × 1240	89.1 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA020-10UC	IMX430	1624 × 1240	89.1 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA023-10GM	IMX249	1920 × 1200	41.0 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA023-10GC	IMX249	1920 × 1200	41.0 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA023-10UM	IMX249	1920 × 1200	41.0 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA023-10UC	IMX249	1920 × 1200	40.0 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA032-10GM	IMX265	2048 × 1536	37.5 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA032-10GC	IMX265	2048 × 1536	37.5 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA050-12GC	IMX264	2448 × 2048	24.1 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA050-12UM	IMX264	2448 × 2048	47.0 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA050-12UC	IMX264	2448 × 2048	60.0 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA050-20UM	PYTHON5000	2592 × 2048	71.8 fps	USB3.0	CE, RoHS, KC	Delisting Preparation
MV-CA050-10GM	IMX264	2448 × 2048	24.1 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA050-20GM	PYTHON5000	2592 × 2048	22.0 fps	GigE	CE, RoHS, KC	Delisting Preparation
MV-CA060-11GM	IMX178	3072 × 2048	17.0 fps	GigE	CE, RoHS, KC	Delisting Preparation
