Light source accessories
Light source accessories such as extension cables provide greater flexibility for integrating light sources and controllers in complex industrial applications. These accessories support extended transmission distances, interface expansion, and various installation requirements, making them suitable for diverse machine vision environments. These industrial lighting solutions are available through JV Technosoft Pvt Ltd for automation and machine vision applications.

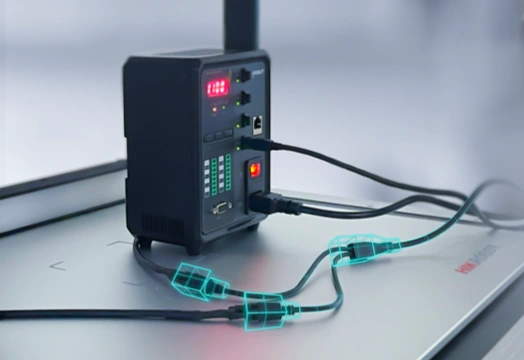

Support cable length extension & multi-channel extension
To support long-distance installations, light source extension cables are available in multiple lengths including 1 m, 3 m, 5 m, 10 m, and 15 m. Along with standard 1-to-1 extension options, multi-channel configurations such as 1-to-2 cables are also available to accommodate different application requirements and improve system flexibility.

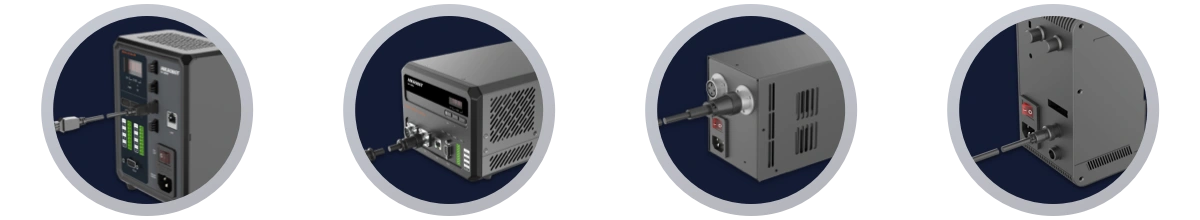

Complete interfaces types, can fulfill diversified requirements
PRODUCT LIST
| Product model | End A connector | End B connector | Length | Certification | Product status |
|---|---|---|---|---|---|
| MV-LW-H-001-1-19M8A | 19M-8A | 19M-8A | 1 m | RoHS 2.0 | Available |
| MV-LW-H-003-1-19M8A | 19M-8A | 19M-8A | 3 m | RoHS 2.0 | Available |
| MV-LW-H-005-1-19M8A | 19M-8A | 19M-8A | 5 m | RoHS 2.0 | Available |
| MV-LW-H-010-1-19M8A | 19M-8A | 19M-8A | 10 m | RoHS 2.0 | Available |
| MV-LW-H-015-1-19M8A | 19M-8A | 19M-8A | 15 m | RoHS 2.0 | Available |
| MV-LW-H-001-1-S | SMR-03V-B | SMR-03V-BC | 1 m | RoHS 2.0 | Available |
| MV-LW-H-003-1-S | SMR-03V-B | SMR-03V-BC | 3 m | RoHS 2.0 | Available |
| MV-LW-H-005-1-S | SMR-03V-B | SMR-03V-BC | 5 m | RoHS 2.0 | Available |
| MV-LW-H-007-1-S | SMR-03V-B | SMR-03V-BC | 7 m | RoHS 2.0 | Available |
| MV-LW-H-010-1-S | SMR-03V-B | SMR-03V-BC | 10 m | RoHS 2.0 | Available |
| MV-LW-H-015-1-S | SMR-03V-B | SMR-03V-BC | 15 m | RoHS 2.0 | Available |
| MV-LW-H-020-1-S | SMR-03V-B | SMR-03V-BC | 20 m | RoHS 2.0 | Available |
| MV-LW-H-030-1-S | SMR-03V-B | SMR-03V-BC | 30 m | RoHS 2.0 | Available |
