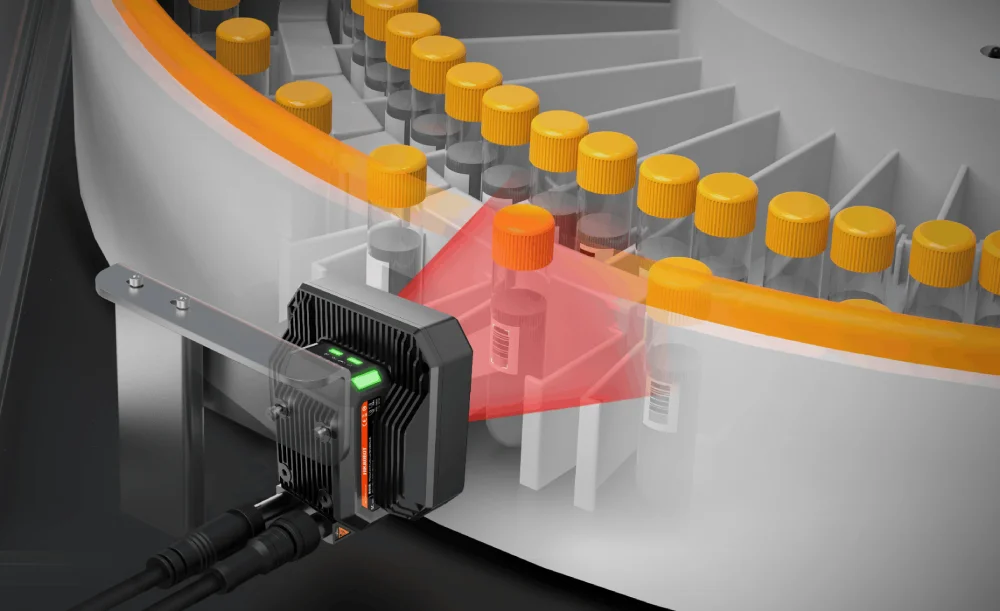

SC5000X Series Smart Camera
SC5000X smart camera is developed on an embedded platform with built-in VM algorithms，which combines powerful processing capabilities with high usability and flexibility. The rotatable tail outlet design, combined with flexible and diverse accessories and modular components, can adapt to changing application requirements. AI technology can significantly reduce the difficulty and implementation cost of visual inspection, helping users quickly apply in various industries and scenarios.
Compact size, no fear of constraints
The overall size of the product is compact, with a rotatable tail design，supports 180° free line-out method ，making it more flexible in installation and suitable for various scenarios with strict requirements for installation space.
SC5000X Series Smart Camera
SC5000X smart camera is developed on an embedded platform with built-in VM algorithms，which combines powerful processing capabilities with high usability and flexibility. The rotatable tail outlet design, combined with flexible and diverse accessories and modular components, can adapt to changing application requirements. AI technology can significantly reduce the difficulty and implementation cost of visual inspection, helping users quickly apply in various industries and scenarios.
PRODUCT LIST
| Product model | Resolution | Max. frame rate | Focal length | Mono/Color | Certification | Product status |
|---|---|---|---|---|---|---|
| MV-SC5020XM-06M-WBN | 1600 × 1216 | 100.0 fps | 6 mm | Mono | CE, KC | Available |
| MV-SC5020XM-12M-WBN | 1600 × 1216 | 100.0 fps | 12 mm | Mono | CE, KC | Available |
| MV-SC5020XM-16M-WBN | 1600 × 1216 | 100.0 fps | 16 mm | Mono | CE, KC | Available |
| MV-SC5020XC-06M-WBN | 1600 × 1216 | 100.0 fps | 6 mm | Color | CE, KC | Available |
| MV-SC5020XC-12M-WBN | 1600 × 1216 | 100.0 fps | 12 mm | Color | CE, KC | Available |
| MV-SC5020XC-16M-WBN | 1600 × 1216 | 100.0 fps | 16 mm | Color | CE, KC | Available |
| MV-SC5050XM-08M-WBN | 2432 × 2048 | 60.0 fps | 8 mm | Mono | CE, KC | Available |
| MV-SC5050XM-12M-WBN | 2432 × 2048 | 60.0 fps | 12 mm | Mono | CE, KC | Available |
| MV-SC5050XM-16M-WBN | 2432 × 2048 | 60.0 fps | 16 mm | Mono | CE, KC | Available |
| MV-SC5050XC-08M-WBN | 2432 × 2048 | 60.0 fps | 8 mm | Color | CE, KC | Available |
| MV-SC5050XC-12M-WBN | 2432 × 2048 | 60.0 fps | 12 mm | Color | CE, KC | Available |
| MV-SC5050XC-16M-WBN | 2432 × 2048 | 60.0 fps | 16 mm | Color | CE, KC | Available |
| MV-SC5020XM-00C-NNN | 1600 × 1216 | 100.0 fps | Mono | CE, KC | Available | |
| MV-SC5020XC-00C-NNN | 1600 × 1216 | 100.0 fps | Color | CE, KC | Available | |
| MV-SC5050XM-00C-NNN | 2432 × 2048 | 60.0 fps | Mono | CE, KC | Available | |
| MV-SC5050XC-00C-NNN | 2432 × 2048 | 60.0 fps | Color | CE, KC | Available | |
| MV-SC5120XM-00C-NNN | 4096 × 2944 | 30.0 fps | Mono | CE, KC | Available | |
| MV-SC5120XC-00C-NNN | 4096 × 2944 | 30.0 fps | Color | CE, KC | Available |
