FA Lens Series

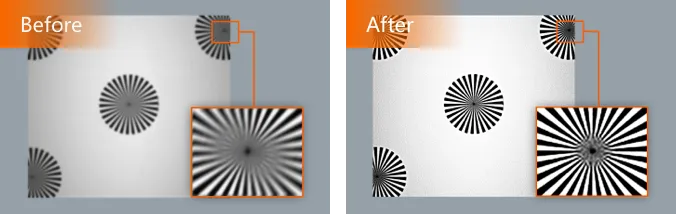

The FA Lens Series is specially developed for machine vision applications, combining high-performance imaging capabilities with a cost-effective design. Engineered to meet the demands of industrial vision systems, these lenses deliver sharp image quality, improved consistency between the image center and edges, and enhanced relative illumination for more accurate visual inspection results. FA Lens
FA Series Lens
Designed to support a wide range of vision applications, the FA lens Series provides reliable optical performance and stable imaging under demanding industrial conditions. Their high-definition output and optimized image clarity make them an ideal choice for precision inspection and automation systems. These advanced vision solutions are available through JV Technosoft Pvt Ltd for industrial automation and machine vision applications. FA Lens
PRODUCT LIST
| Product model | Focal length | F-number | Image size | Mount | Certification | Product status |
|---|---|---|---|---|---|---|
| MVL-HF0628M-6MPE | 6 mm | F2.8 to F16 | Ø9 mm (1/1.8'') | C-mount | RoHS 2.0 | Available |
| MVL-HF0828M-6MPE | 8 mm | F2.8 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-HF1228M-6MPE | 12 mm | F2.8 to F16 | Ø9 mm (1/1.8'') | C-mount | RoHS 2.0 | Available |
| MVL-HF1628M-6MPE | 16 mm | F2.8 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-HF2528M-6MPE | 25 mm | F2.8 to F16 | Ø9 mm (1/1.8'') | C-mount | RoHS 2.0 | Available |
| MVL-HF3028M-6MPE | 30 mm | F2.8 to F16 | Ø9 mm (1/1.8") | C-mount | ROHS 2.0 | Available |
| MVL-HF4028M-6MPE | 40 mm | F2.8 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-HF5028M-6MPE | 50 mm | F2.8 to F16 | Ø9 mm (1/1.8'') | C-mount | RoHS 2.0 | Available |
| MVL-HF0624M-10MP | 6 mm | F2.4 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-HF0824M-10MP | 8 mm | F2.4 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-HF1224M-10MP | 12 mm | F2.4 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-HF1624M-10MP | 16 mm | F2.4 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-HF2524M-10MP | 25 mm | F2.4 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-HF3524M-10MP | 35 mm | F2.4 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-HF5024M-10MP | 50 mm | F2.4 to F16 | Ø9 mm (1/1.8") | C-mount | RoHS 2.0 | Available |
| MVL-MF0824M-5MPE | 8 mm | F2.4 to F16 | Ø11 mm (2/3'') | C-mount | RoHS 2.0 | Available |
| MVL-MF1224M-5MPE | 12 mm | F2.4 to F16 | Ø11 mm (2/3'') | C-mount | RoHS 2.0 | Available |
| MVL-MF1618M-5MPE | 16 mm | F1.8 to F16 | Ø11 mm (2/3'') | C-mount | RoHS 2.0 | Available |
| MVL-MF2518M-5MPE | 25 mm | F1.8 to F16 | Ø11 mm (2/3'') | C-mount | RoHS 2.0 | Available |
| MVL-MF3518M-5MPE | 35 mm | F1.8 to F16 | Ø11 mm (2/3'') | C-mount | RoHS 2.0 | Available |
| MVL-MF5028M-5MPE | 50 mm | F2.8 to F16 | Ø11 mm (2/3'') | C-mount | RoHS 2.0 | Available |
| MVL-MF0828M-8MP | 8 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF1228M-8MP | 12 mm | F2.8 to F16 | Ø11 mm (2/3") | C-Mount | RoHS 2.0 | Available |
| MVL-MF1628M-8MP | 16 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF2528M-8MP | 25 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF3528M-8MP | 35 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF5028M-8MP | 50 mm | F2.8 to F16 | Ø11 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF0828M-10MPE | 8 mm | F2.8 to F16 | Ø11.2 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF1228M-10MPE | 12 mm | F2.8 to F16 | Ø11.2 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF1628M-10MPE | 16 mm | F2.8 to F16 | Ø11.2 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF2528M-10MPE | 25 mm | F2.8 to F16 | Ø11.2 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF3528M-10MPE | 35 mm | F2.8 to F16 | Ø11.2 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-MF5028M-10MPE | 50 mm | F2.8 to F16 | Ø11.2 mm (2/3") | C-mount | RoHS 2.0 | Available |
| MVL-KF0618M-12MPE | 6 mm | F1.8 to F16 | Ø17.6 mm (1.1") | C-mount | RoHS 2.0 | Available |
| MVL-KF0814M-12MPE | 8 mm | F1.4 to F16 | Ø17.6 mm (1.1") | C-mount | RoHS 2.0 | Available |
| MVL-KF1228M-12MPE | 12 mm | F2.8 to F22 | Ø17.6 mm (1.1") | C-mount | RoHS 2.0 | Available |
| MVL-KF1628M-12MPE | 16 mm | F2.8 to F16 | Ø17.6 mm (1.1") | C-mount | RoHS 2.0 | Available |
| MVL-KF2528M-12MPE | 25 mm | F2.8 to F22 | Ø17.6 mm (1.1") | C-mount | RoHS 2.0 | Available |
| MVL-KF3528M-12MPE | 35 mm | F2.8 to F22 | Ø17.6 mm (1.1") | C-mount | RoHS 2.0 | Available |
| MVL-KF5028M-12MPE | 50 mm | F2.8 to F22 | Ø17.6 mm (1.1") | C-mount | RoHS 2.0 | Available |
| MVL-KF1224M-25MP | 12 mm | F2.4 to F16 | Ø19.3 mm (1.2'') | C-mount | RoHS 2.0 | Available |
| MVL-KF1624M-25MP | 16 mm | F2.4 to F16 | Ø19.3 mm (1.2'') | C-mount | RoHS 2.0 | Available |
| MVL-KF2524M-25MP | 25 mm | F2.4 to F16 | Ø19.3 mm (1.2'') | C-mount | RoHS 2.0 | Available |
| MVL-KF3524M-25MP | 35 mm | F2.4 to F16 | Ø19.3 mm (1.2'') | C-mount | RoHS 2.0 | Available |
| MVL-KF5024M-25MP | 50 mm | F2.4 to F16 | Ø19.3 mm (1.2'') | C-mount | RoHS 2.0 | Available |
| MVL-KF1640-25MP | 16 mm | F4.0 | Ø19.3 mm (1.2") | C-mount | RoHS 2.0 | Available |
| MVL-KF2540-25MP | 25 mm | C-Mount | RoHS2.0 | Available | ||
| MVL-KF3540-25MP | 35 mm | F4.0 | Ø19.3 mm (1.2'') | C-mount | RoHS 2.0 | Available |
| MVL-KF5040-25MP | 50 mm | F4.0 | Ø19.3 mm (1.2'') | C-mount | RoHS 2.0 | Available |
| MVL-KF0818M-12MP | 8 mm | F1.8 to F11 | Φ16 mm (1") | C-mount | RoHS 2.0 | Available |
| MVL-KF1228M-12MP | 12 mm | F2.8 to F16 | Ø17.6 mm | C-mount | RoHS 2.0 | Available |
| MVL-KF1628M-12MP | 16 mm | F2.8 to F16 | Ø17.6 mm | C-mount | RoHS 2.0 | Available |
| MVL-KF3528M-12MP | 35 mm | F2.8 to F16 | Ø17.6 mm | C-mount | RoHS 2.0 | Available |
| MVL-KF7528M-12MP | 75 mm | F2.8 to F22 | Ø16 mm (1") | C-mount | RoHS 2.0 | Available |
| MVL-AF1828M-M42B | 18 mm | F2.8 to F22 | Φ30 mm | M42 × P1 | RoHS 2.0 | Available |
| MVL-AF2045M-M42 | 20 mm | F4.5 to C | Φ30 mm | M42 × P1 | RoHS 2.0 | Available |
| MVL-AF2524M-M42 | 25 mm | F2.4 to F16 | Φ29 mm | M42 × P1 | RoHS2.0 | Available |
| MVL-AF2840M-M42 | 28 mm | F4.0 to F11 | Ø30 mm | M42 × P1 | RoHS 2.0 | Available |
| MVL-AF3528M-M42 | 35 mm | F2.8 to F16 | Φ42 mm | M42 × P1 | RoHS 2.0 | Available |
| MVL-AF3528M-M42A | 35 mm | F2.8 to F16 | Φ29 mm | M42 × P1 | RoHS 2.0 | Available |
| MVL-AF4028M-M42 | 40 mm | F2.8 to F22 | Φ37 mm | M42 × P1 | RoHS 2.0 | Available |
| MVL-AF5028M-M42A | 50 mm | F2.8 to F16 | Φ29 mm | M42 × P1 | RoHS 2.0 | Available |
| MVL-AF5040M-M42 | 50 mm | F4 to F22 | Φ37 mm | M42 × P1 | RoHS 2.0 | Available |
| MVL-LF3528M-F | 35 mm | F2.8 to F16 | Φ43.2 mm | F-mount | RoHS 2.0 | Available |
| MVL-LF3540M-F | 35 mm | F4.0 to F16 | Φ43.2 mm | F-mount | RoHS 2.0 | Available |
| MVL-LF5040M-F | 50 mm | F4.0 to F22 | Ø56 mm | F-mount | RoHS 2.0 | Available |
| MVL-LF8040M-F | 80 mm | F4.0 to F22 | Ø56 mm | F-moun | RoHS 2.0 | Available |
| MVL-LF3040M-005-M72 | 30 mm | F4.0 to F16 | Φ58 mm | M72 × P0.75 | RoHS 2.0 | Available |
| MVL-LF4040M-01-M72 | 40 mm | F4.0 to F22 | Φ58 mm | M72 × P0.75 | RoHS 2.0 | Available |
| MVL-LF6040M-013-M72 | 60 mm | F4.0 to F22 | Ø58 mm | M72 × P0.75 | RoHS2.0 | Available |
| MVL-LF6040M-0168V-M72 | 60 mm | F4.0 to F22 | Φ60 mm | M72 × P0.75 | RoHS 2.0 | Available |
| MVL-LF8040M-021V-M72 | 80 mm | F4.0 to F22 | Ø60 mm | M72 × P0.75 | RoHS 2.0 | Available |
| MVL-LF2540M-M58-65MP | 25 mm | F4.0 to F22 | Ø46 mm | M58 × P0.75 | RoHS 2.0 | Available |
| MVL-LF3540M-M58-65MP | 35 mm | F4.0 to F22 | Ø42 mm | M58 × P0.75 | RoHS 2.0 | Available |
| MVL-LF5036M-M58-65MP | 50 mm | F3.6 to F22 | Ø46 mm | M58 × P0.75 | RoHS 2.0 | Available |
| MVL-LF8036M-M58-65MP | 80 mm | F3.6 to F22 | Ø46 mm | M58 × P0.75 | RoHS 2.0 | Available |
| SA1220M-10MP | 12 mm | F2.0 to F22 | Ø23 mm (4/3") | C-mount | RoHS 2.0 | Available |
| SA1620M-10MP | 16 mm | F2.0 to F22 | Ø23 mm (4/3") | C-mount | RoHS 2.0 | Available |
| SA2520M-10MP | 25 mm | F2.0 to F22 | Ø23 mm (4/3") | C-mount | RoHS 2.0 | Available |
| SA3520M-10MP | 35 mm | F2.0 to F22 | Ø23 mm (4/3") | C-mount | RoHS 2.0 | Available |
| SA5020M-10MP | 50 mm | F2.0 to F22 | Ø23 mm (4/3") | C-mount | RoHS 2.0 | Available |
| SA8520M-10MP | 85 mm | F2.0 to F22 | Ø23 mm (4/3") | C-mount | RoHS 2.0 | Available |
