CS Area Scan Camera

CS Area Scan Camera Series

HIKROBOT released the 2nd generation of CS Series with technological breakthroughs from products appearance design, R&D to production management, which gives an upgraded experience to all end users.

New update, new function

The new second-generation CS series industrial cameras are equipped with excellent image sensors, high dynamic range, good signal-to-noise ratio, excellent image quality, excellent power consumption design, compatible with machine vision standard protocols and GenlCam standards, and seamlessly connect with third-party software.

Evolved performance, various scenarios adaptable

New-generation appearance structure, four-sided installation support, wider voltage access, wider temperature width, better adapt to complex visual application scenarios.

Upgraded imaging, built-in algorithms

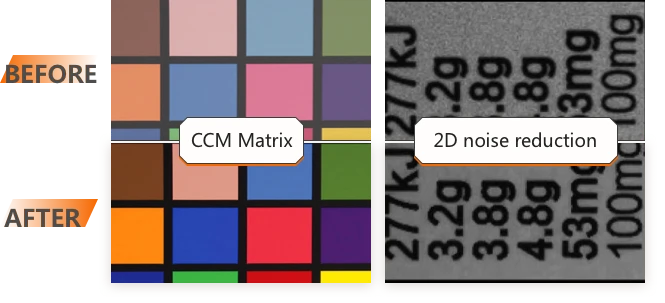

The camera has built-in a variety of complex algorithms and functions, such as lossless compression, 2D noise reduction, lens shading correction, CCM, etc., which can improve the camera image quality in all directions, while ensuring the camera has a higher frame rate and more excellent quality.

PRODUCT LIST

Product model	Sensor model	Resolution	Max. frame rate	Data interface	Mono/Color	Certification	Product status
MV-CS004-10GM	IMX297	720 × 540	125.2 fps	GigE		CE, RoHS, KC	Available
MV-CS004-10GC	IMX297	720 × 540	125.2 fps	GigE		CE, RoHS, KC	Available
MV-CS004-10UM	IMX287	720 × 540	526.5 fps	USB3.0		CE, RoHS, KC	Available
MV-CS004-10UM V5	IMX287	720 × 540	525.5 fps	USB3.0	Mono	CE, RoHS, KC	Available
MV-CS004-10UC	IMX287	720 × 540	526.5 fps	USB3.0		CE, RoHS, KC	Available
MV-CS004-10UC V5	IMX287	720 × 540	530.0 fps	USB3.0	Color	CE, RoHS, KC	Available
MV-CS004-11GM	IMX287	720 × 540	312.9 fps	GigE		CE, RoHS, KC	Available
MV-CS004-11GC	IMX287	720 × 540	312.9 fps	GigE		CE, RoHS, KC	Available
MV-CS013-60GN	BSI	1224 × 1024	59.2 fps	GigE	Near-infrared	CE, RoHS, KC	Available
MV-CS016-10GM	IMX296	1440 × 1080	65.2 fps	GigE		CE, RoHS, KC	Available
MV-CS016-10GC	IMX296	1440 × 1080	65.2 fps	GigE		CE, RoHS, KC	Available
MV-CS016-10UM	IMX273	1440 × 1080	249.1 fps	USB3.0		CE, RoHS, KC	Available
MV-CS016-10UM V5	IMX273	1440 × 1080	249.1 fps	USB3.0	Mono	CE, RoHS, KC	Available
MV-CS016-10UC	IMX273	1440 × 1080	249.1 fps	USB3.0		CE, RoHS, KC	Available
MV-CS016-10UC V5	IMX273	1440 × 1080	249.1 fps	USB3.0	Color	CE, RoHS, KC	Available
MV-CS016-11GM	IMX273	1440 × 1080	78.2 fps	GigE		CE, RoHS, KC	Available
MV-CS020-10GM	IMX430	1624 × 1240	60.0 fps	GigE		CE, RoHS, KC	Available
MV-CS020-10GC	IMX430	1624 × 1240	60.0 fps	GigE		CE, RoHS, KC	Available
MV-CS020-10UM	IMX430	1624 × 1240	90.0 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
MV-CS020-10UC	IMX430	1624 × 1240	90.0 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
MV-CS020-60GM	BSI	1624 × 1240	60.3 fps	GigE	Mono,Color	CE, RoHS, KC	Available
MV-CS020-60GC	BSI	1624 × 1240	60.3 fps	GigE	Mono,Color	CE, RoHS, KC	Available
MV-CS023-10GM	IMX249	1920 × 1200	41.0 fps	GigE		CE, RoHS, KC	Available
MV-CS023-10GC	IMX249	1920 × 1200	41.0 fps	GigE		CE, RoHS, KC	Available
MV-CS023-10UM	IMX249	1920 × 1200	41.0 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
MV-CS023-10UC	IMX249	1920 × 1200	41.0 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
MV-CS028-10UM	IMX421	1936 × 1464	132.2 fps	USB3.0		CE, RoHS, KC	Available
MV-CS032-10GM	IMX265	2048 × 1536	38.1 fps	GigE	Mono	CE, RoHS, KC	Delisting Preparation
MV-CS032-10GC	IMX265	2048 × 1536	38.1 fps	GigE	Color	CE, RoHS, KC	Delisting Preparation
MV-CS032-60GM	BSI	2048 × 1536	38.6 fps	GigE	Mono	CE, RoHS, KC	Available
MV-CS032-60GM V5	BSI	2048 × 1536	38.9 fps	GigE	Mono	CE, RoHS, KC	Available
MV-CS032-60GC	BSI	2048 × 1536	38.6 fps	GigE	Color	CE, RoHS, KC	Available
MV-CS032-60GC V5	BSI	2048 × 1536	38.9 fps	GigE	Color	CE, RoHS, KC	Available
MV-CS040-A0UM		2048 × 2048	90.1 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
MV-CS040-A0UC		2048 × 2048	90.1 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
MV-CS050-10GM	IMX264	2448 × 2048	24.2 fps	GigE		CE, RoHS, KC	Available
MV-CS050-10GC	IMX264	2448 × 2048	24.2 fps	GigE		CE, RoHS, KC	Available
MV-CS050-10GM-PRO	IMX264	2448 × 2048	35.6 fps	GigE		CE, RoHS, KC	Available
MV-CS050-10GC-PRO	IMX264	2448 × 2048	35.6 fps	GigE		CE, RoHS, KC	Available
MV-CS050-10UM	IMX264	2448 × 2048	60.0 fps	USB3.0		CE, KC, RoHS	Available
MV-CS050-10UC	IMX264	2448 × 2048	60.0 fps	USB3.0		CE, KC, RoHS	Available
MV-CS050-20GM	XGS5000	2592 × 2048	22.7 fps	GigE		CE, RoHS, KC	Available
MV-CS050-20GC	XGS5000	2592 × 2048	22.7 fps	GigE		CE, RoHS, KC	Available
MV-CS050-60GM	BSI	2448 × 2048	23.0 fps	GigE	Mono	CE, RoHS, KC	Available
MV-CS050-60GM V5	BSI	2448 × 2048	24.4 fps	GigE	Mono	CE, RoHS, KC	Available
MV-CS050-60GC	BSI	2448 × 2048	23.0 fps	GigE	Color	CE, RoHS, KC	Available
MV-CS050-60GC V5	BSI	2448 × 2048	24.4 fps	GigE	Color	CE, RoHS, KC	Available
MV-CS050-60GN	BSI	2448 × 2048	23.0 fps	GigE	Near IR	CE, RoHS, KC	Available
MV-CS050-60UM	BSI	2448 × 2048	60.0 fps	USB3.0	Mono	CE, RoHS, KC	Available
MV-CS050-60UM V5	BSI	2448 × 2048	60.0 fps	USB 3.0, compatible with USB 2.0	Mono Color	CE, RoHS, KC	Available
MV-CS050-60UC	BSI	2448 × 2048	60.0 fps	USB3.0	Color	CE, RoHS, KC	Available
MV-CS050-60UC V5	BSI	2448 × 2048	60.0 fps	USB 3.0, compatible with USB 2.0	Mono Color	CE, RoHS, KC	Available
MV-CS050-80GM	SS	2448 × 2048	24.0 fps	GigE		CE, RoHS, KC	Available
MV-CS050-80GC	SS	2448 × 2048	24.0 fps	GigE		CE, RoHS, KC	Available
MV-CS050-80UM	SS	2448 × 2048	80.0 fps	USB 3.0, compatible with USB 2.0		CE, RoHS, KC	Available
MV-CS050-80UC	SS	2448 × 2048	80.0 fps	USB 3.0, compatible with USB 2.0		CE, RoHS, KC	Available
MV-CS050-90GM	GMAX3405	2448 × 2048	24.2 fps	GigE	Mono	CE, RoHS, KC	Available
MV-CS050-90GC	GMAX3405	2448 × 2048	24.2 fps	GigE	Color	CE, RoHS, KC	Available
MV-CS060-10GM	IMX178	3072 × 2048	19.1 fps	GigE		CE, RoHS, KC	Available
MV-CS060-10GM V5	IMX178	3072 × 2048	19.5 fps	GigE	Mono	CE, RoHS, KC	Available
MV-CS060-10GC	IMX178	3072 × 2048	19.1 fps	GigE		CE, RoHS, KC	Available
MV-CS060-10GC V5	IMX178	3072 × 2048	19.5 fps	GigE	Color	CE, RoHS, KC	Available
MV-CS060-10GM-PRO	IMX178	3072 × 2048	30.7 fps	GigE		CE, RoHS, KC	Available
MV-CS060-10GC-PRO	IMX178	3072 × 2048	30.7 fps	GigE		CE, RoHS, KC	Available
MV-CS060-10UM	IMX178	3072 × 2048	60.9 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
MV-CS060-10UC	IMX178	3072 × 2048	60.9 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
MV-CS060-10UM-PRO	IMX178	3072 × 2048	59.6 fps	USB3.0		CE, RoHS, KC	Available
MV-CS060-10UC-PRO	IMX178	3072 × 2048	59.6 fps	USB3.0		CE, RoHS, KC	Available
MV-CS120-10GM V5	IMX226	4024 × 3036	10.0 fps	GigE	Mono	CE, RoHS, KC	Available
MV-CS120-10GC V5	IMX226	4024 × 3036	10.0 fps	GigE	Color	CE, RoHS, KC	Available
MV-CS120-10UM	IMX226	4024 × 3036	29.4 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
MV-CS120-10UC	IMX226	4024 × 3036	29.4 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
MV-CS200-10GM	IMX183	5472 × 3648	5.9 fps	GigE		CE, RoHS, KC	Available
MV-CS200-10GC	IMX183	5472 × 3648	5.9 fps	GigE		CE, RoHS, KC	Available
MV-CS200-10GM V5	IMX183	5472 × 3648	5.9 fps	GigE		CE, RoHS, KC	Available
MV-CS200-10GC V5	IMX183	5472 × 3648	5.9 fps	GigE		CE, RoHS, KC	Available
MV-CS200-10UM	IMX183	5472 × 3648	19.2 fps	USB3.0		CE, RoHS, KC	Available
MV-CS200-10UM V5	IMX183	5472 × 3648	19.2 fps	USB3.0	Mono	CE, RoHS, KC	Available
MV-CS200-10UC	IMX183	5472 × 3648	19.2 fps	USB3.0		CE, RoHS, KC	Available
MV-CS200-10UC V5	IMX183	5472 × 3648	19.2 fps	USB3.0	Color	CE, RoHS, KC	Available
MV-CS200-10GM-ADV	IMX183	5472 × 3648	5.9 fps	GigE	Mono	CE, RoHS, KC	Available
MV-CS200-RC	IMX183	5472 × 3648	19.2 fps	USB3.0	Color	CE, FCC, RoHS, KC	Available
MVAC-PY-FV373-D3XF		4 Megapixel	90.1 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
