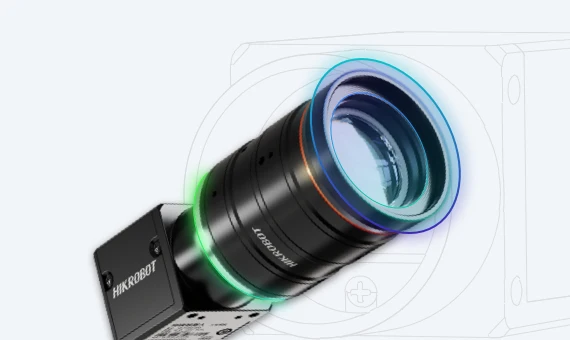

CE Area Scan Camera Series
The CE Area Scan Camera Series is a versatile industrial camera range offering resolutions from 0.3MP to 20MP. Designed primarily with rolling shutter exposure technology, these cameras support both Gigabit Ethernet and USB 3.0 interfaces, making them suitable for a wide variety of industrial imaging applications. JV Technosoft Pvt Ltd delivers advanced machine vision integration and automation solutions for industrial environments.
Compact structure but strong functions
The entire series is compatible with standard C-mount lenses while maintaining a compact form factor similar to GigE and USB3.0 cameras. Integrated image enhancement parameters help improve image clarity and overall imaging performance for demanding inspection tasks.
Compact structure but strong functions
The entire series is compatible with standard C-mount lenses while maintaining a compact form factor similar to GigE and USB3.0 cameras. Integrated image enhancement parameters help improve image clarity and overall imaging performance for demanding inspection tasks.
PRODUCT LIST
| Product model | Sensor model | Resolution | Max. frame rate | Data interface | Mono/Color | Certification | Product status |
|---|---|---|---|---|---|---|---|
| MV-CE013-80GM | SS | 1280 × 1024 | 89.9 fps | GigE | CE, RoHS, KC | Delisting Preparation | |
| MV-CE013-80GC | SS | 1280 × 1024 | 89.9 fps | GigE | CE, RoHS, KC | Delisting Preparation | |
| MV-CE013-80UM | SS | 1280 × 1024 | 148.0 fps | USB3.0 | CE, RoHS, KC | Delisting Preparation | |
| MV-CE020-10GC | IMX290 | 1920 × 1080 | 58.0 fps | GigE | CE, RoHS, KC | Delisting Preparation | |
| MV-CE050-30UC | AR0521 | 2592 × 1944 | 44.7 fps | USB3.0 | CE, RoHS, KC | Delisting Preparation | |
| MV-CE050-31GC | AR0521 | 2592 × 1944 | 24.0 fps | GigE | CE, RoHS, KC | Delisting Preparation | |
| MV-CE060-10UM | IMX178 | 3072 × 2048 | 42.7 fps | USB3.0 | CE, RoHS, KC | Delisting Preparation | |
| MV-CE060-10UC | IMX178 | 3072 × 2048 | 42.7 fps | USB3.0 | CE, RoHS, KC | Delisting Preparation | |
| MV-CE100-30GC | MT9J003 | 3840 × 2748 | 7.0 fps | GigE | CE, RoHS, KC | Delisting Preparation | |
| MV-CE120-10GM | IMX226 | 4024 × 3036 | 9.6 fps | GigE | CE, RoHS, KC | Delisting Preparation | |
| MV-CE120-10GC | IMX226 | 4024 × 3036 | 9.6 fps | GigE | CE, RoHS, KC | Delisting Preparation | |
| MV-CE120-10UM | IMX226 | 4000 × 3036 | 31.9 fps | USB3.0 | CE, FCC, RoHS, KC | Delisting Preparation | |
| MV-CE120-10UC | IMX226 | 4000 × 3036 | 31.9 fps | USB3.0 | CE, FCC, RoHS, KC | Delisting Preparation | |
| MV-CE200-10UM | IMX183 | 5472 × 3648 | 19.2 fps | USB3.0 | CE, RoHS, KC | Delisting Preparation | |
| MV-CE200-10GM | IMX183 | 5472 × 3648 | 5.9 fps | GigE | CE, RoHS, KC | Delisting Preparation | |
| MV-CE200-11UM | IMX183 | 5472 × 3648 | 19.2 fps | USB3.0 | CE, RoHS, KC | Delisting Preparation | |
| MV-CS060-RC | IMX178 | 3072 × 2048 | 42.7 fps | USB3.0 | Color | CE, FCC, RoHS, KC | Available |
