ID3000 Series Smart Code Reader
The ID3000 Series Smart Code Reader is built on an advanced embedded deep-learning platform and features a compact, modular design for flexible industrial integration. Designed for diverse barcode reading applications, the system supports easy mechanical focusing, automatic polarization functionality, and controllable light source branching, making it suitable for complex industrial automation and inspection environments.

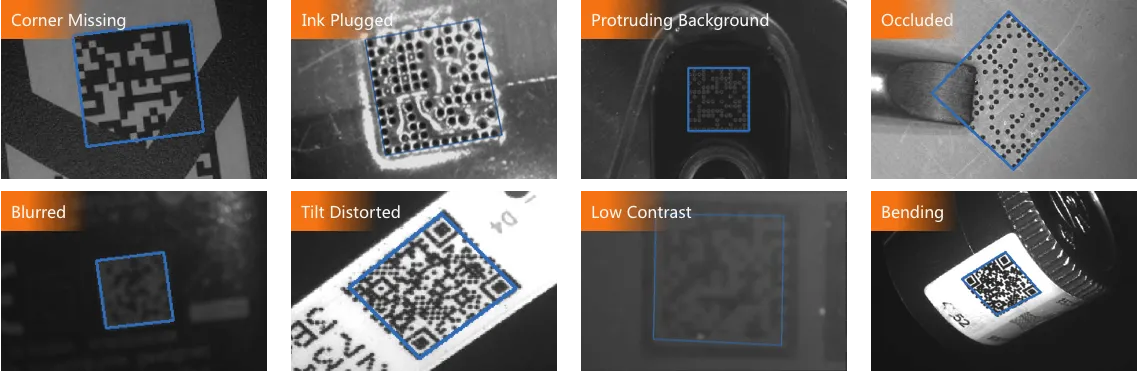

Out-standing code reading effect
Powered by a high-performance deep-learning SoC chip, the ID3000 Series Smart Code Reader delivers strong computing capabilities while maintaining lower energy consumption. Its intelligent recognition technology ensures fast and stable decoding performance for both standard label barcodes and challenging DPM codes, helping improve efficiency and reliability in high-speed production processes.

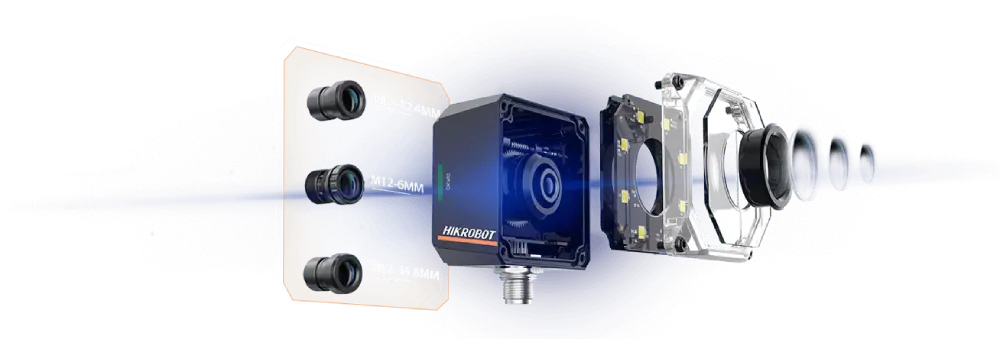

Modular Design
To enhance adaptability across different applications, the ID3000 Series Smart Code Reader offers multiple light source, lens, and module options that can be easily switched according to operational requirements. This flexible configuration helps achieve optimal image illumination while supporting various working distances and fields of view under demanding industrial conditions. These intelligent barcode reading solutions are available through JV Technosoft Pvt Ltd for machine vision and industrial automation systems.
PRODUCT LIST
| Product model | Resolution | Focal length | Max. reading speed | Max. frame rate | Certification | Product status |
|---|---|---|---|---|---|---|
| MV-ID3013PM-06M-WBN | 1280 × 1024 | 6 mm (0.2") | 84 codes/sec | 60.0 fps | CE, RoHS | Available |
| MV-ID3013PM-12M-WBN | 1280 × 1024 | 12 mm (0.5") | 84 codes/sec | 60.0 fps | CE, RoHS | Available |
| MV-ID3013PM-15M-WBN | 1280 × 1024 | 14.8 mm (0.6") | 84 codes/sec | 60.0 fps | CE, RoHS | Available |
| MV-ID3016PM-06M-WBN | 1408 × 1024 | 6 mm (0.2") | 84 codes/sec | 60.0 fps | CE, FCC, RoHS, KC | Delisting Preparation |
| MV-ID3016PM-12M-WBN | 1408 × 1024 | 12 mm (0.5") | 84 codes/sec | 60.0 fps | CE, FCC, RoHS, KC | Delisting Preparation |
| MV-ID3016PM-15M-WBN | 1408 × 1024 | 14.8 mm (0.6") | 84 codes/sec | 60.0 fps | CE, FCC, RoHS, KC | Delisting Preparation |
| MV-ID3016XM-08M-RBN | 1408 × 1200 | 8 mm | 110 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3016XM-12M-RBN | 1408 × 1200 | 12 mm | 110 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3016XM-16M-RBN | 1408 × 1200 | 16 mm | 110 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3016XM-25M-RBN | 1408 × 1200 | 25 mm | 110 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3016XM-16L-RBN | 1408 × 1200 | 16 mm | 110 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3030XM-08M-RBN | 2048 × 1536 | 8 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3030XM-12M-RBN | 2048 × 1536 | 12 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3030XM-16M-RBN | 2048 × 1536 | 16 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3030XM-25M-RBN | 2048 × 1536 | 25 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3030XM-16L-RBN | 2048 × 1536 | 16 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3050XM-08M-RBN | 2432 × 2048 | 8 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3050XM-12M-RBN | 2432 × 2048 | 12 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3050XM-16M-RBN | 2432 × 2048 | 16 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3050XM-25M-RBN | 2432 × 2048 | 25 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3050XM-16L-RBN | 2432 × 2048 | 16 mm | 90 codes/sec | 60.0 fps | CE, RoHS, KC | Available |
| MV-ID3050PM | 2432 × 2048 | 8 mm;25 mm;12 mm;16 mm | 60 codes/sec | 50.0 fps | CE, RoHS, KC | Available |
| MV-ID3400L-16S-WBN | 1280 × 1024 | 6 mm (0.2") | 84 codes/sec | 60.0 fps | CE, RoHS | Available |
