SC1000 Series Vision Sensor
The SC1000 Series Vision Sensor combines the advanced capabilities of vision inspection systems with the simplicity of traditional sensors, delivering efficient and high-precision inspection performance in a compact design. Equipped with built-in AI modules and advanced vision algorithms, the system efficiently handles presence, absence, and classification detection tasks, making it suitable for compact workstations and machine applications. These intelligent vision solutions are available through JV Technosoft Pvt Ltd for industrial automation and inspection systems.
Easy test and vision operation

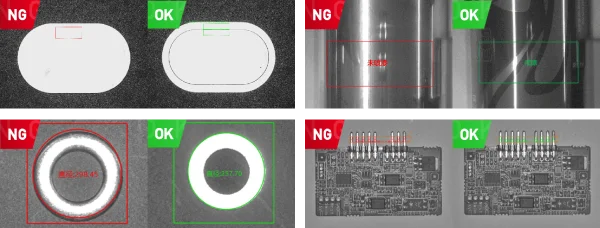

The SC1000 Series supports multiple built-in vision inspection algorithms that simplify various error-proofing and detection applications. Compared with conventional industrial sensors, setup and debugging are easier, as the guided workflow eliminates the need for programming. Users can configure, edit, and monitor inspection processes directly through the touch-screen visual interface for faster deployment.
Compact size and convenient installation
Featuring an ultra-compact structure, the SC1000 Series can be easily installed in limited spaces and integrated into compact machines and miniaturized equipment. Its space-saving design allows seamless deployment in applications with strict installation requirements.
PRODUCT LIST
| Product model | Resolution | Max. frame rate | Focal length | Mono/Color | Certification | Product status | |
|---|---|---|---|---|---|---|---|
| MV-SC1003M-03S-WBN-NR | 640 × 480 | 15.0 fps | 3.1 mm | Mono | CE, KC | Available | |
| MV-SC1003M-03S-WBN-SR | 640 × 480 | 15.0 fps | 3.1 mm | Mono | CE, KC | Available | |
| MV-SC1008M-05S-WBN-NR | 1024 × 768 | 15.0 fps | 4.9 mm | Mono | CE, KC | Available | |
| MV-SC1008M-05S-WBN-SR | 1024 × 768 | 15.0 fps | 4.9 mm | Mono | CE, KC | Available | |
| MV-SC1003C-03S-WBN-NR | 640 × 480 | 15.0 fps | 3.1 mm | Color | CE, KC | Available | |
| MV-SC1003C-03S-WBN-SR | 640 × 480 | 15.0 fps | 3.1 mm | Color | CE, KC | Available |
