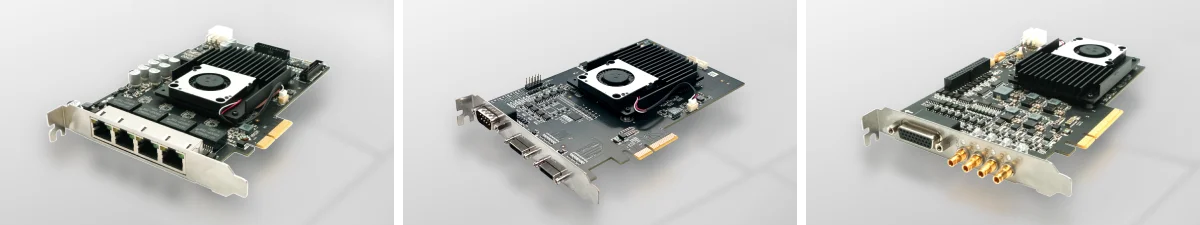

Frame Grabber
Frame Grabbers are essential components in machine vision systems, enabling efficient image acquisition and seamless data transfer for industrial inspection and automation applications. These devices help businesses build complete and reliable vision solutions while simplifying system integration and product selection processes. Frame Grabber
Rich interfaces to meet different protocol applications
Designed to support multiple communication standards, frame grabbers offer a wide range of interfaces including GigE, 10 GigE, USB 3.0, Camera Link, and CoaXPress. With data bandwidth support ranging from 1 Gbps to 50 Gbps, they can efficiently handle varying industrial imaging and high-speed data transmission requirements across different applications.
Full technical support system
In addition to advanced hardware capabilities, users also benefit from strong technical guidance and dependable after-sales support provided through JV Technosoft Pvt Ltd. Their expertise assists customers in selecting the right frame grabber solutions, enabling faster secondary development and helping resolve challenges encountered in real-world industrial projects. Frame Grabber
PRODUCT LIST
| Product model | Interconnect | Standard | Interface | Camera quantity | Certification | Product status |
|---|---|---|---|---|---|---|
| MV-GE1004 | PCI-E gen2 × 4 | GigE Vision | RJ45 × 4 | 4 at most | WEEE, RoHS, REACH | Available |
| MV-GE2004P | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 4 | 4 at most | CE, RoHS, KC | Available |
| MV-GE2002L V2.0 | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 2 | 2 at most | CE, RoHS, KC | Available |
| MV-GE2004L V2.0 | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 ×4 | 4 at most | CE, RoHS, KC | Available |
| MV-GE2202 | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 2 | 2 at most | CE, KC | Delisting Preparation |
| MV-GE2202P | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 2 | 2 at most | CE, KC | Delisting Preparation |
| MV-GE2204 | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 4 | 4 at most | CE, KC | Available |
| MV-GE2204P | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 4 | 4 at most | CE, KC | Available |
| MV-GT1002 | PCI-E gen2 × 8 | GigE Vision V2.0 | RJ45 × 2 | 2 at most | CE, KC, RoHS | Available |
| MV-GT1004 | PCI-E gen2 × 8 | GigE Vision V2.0 | RJ45 × 4 | 4 at most (total bandwidth up to 27 Gbps) | CE, KC, RoHS | Available |
| MV-GT2001 | PCI-E gen3 × 4 | IEEE 802.3 | RJ45 × 1 | 1 at most | RoHS, CE, KC | Delisting Preparation |
| MV-GT2002 | PCI-E gen3 × 4 | IEEE 802.3 | RJ45 × 2 | 2 at most | RoHS, CE, KC | Delisting Preparation |
| MV-GS1002F V3.0 | PCI-E gen3 × 4 | XoFLink | 46024 | CE, KC, RoHS | Available | |
| MV-GS1004 | PCI-E gen2 × 8 | GigE Vision V2.0 | SFP × 4 | 4 at most (total bandwidth up to 27 Gbps) | CE, KC | Available |
| MV-GS1004F V3.0 | PCI-E gen3 × 4 | XoFLink | 1/2/3/4 | CE, KC, RoHS | Available | |
| MV-GS1104F | PCI-E gen3 × 8 | XoFLink | 1/2/3/4 | CE, KC, RoHS | Available | |
| MV-GU2104 | PCI-E gen2 × 4 | USB 3.0 | USB3.0 type-A, female | 4 at most | CE, RoHS | Available |
| MV-GX1002 | PCI-E gen2 × 8 | CoaXPress 1.0/1.1 | DIN 1.0/2.3 × 2 | 2 at most | RoHS, CE, KC | Available |
| MV-GX1004 | PCI-E gen2 × 8 | CoaXPress 1.0/1.1 | DIN 1.0/2.3 × 4 | 4 at most | RoHS, CE, KC | Available |
| MV-GY1004 | PCI-E gen3 × 8 | CoaXPress 2.1 | HD-BNC × 4 | 4 at most, supports connecting 1 to 4 camera(s) | CE, RoHS, KC | Available |
| MV-GC1002-V2 | PCI-E gen2 × 4 | Camera Link 2.1 | SDR × 2 | 2 at most | CE, RoHS, UL | Available |
| MV-GC1102IOL | PCI-E gen2 × 4 | Camera Link 2.1 | SDR × 2 | 2 at most | CE, RoHS, KC | Available |
| MV-GT1104P | PCI-E gen3 × 8 | GigE Vision V2.0 | RJ45 × 4, supports PoE | 4 at most (total bandwidth up to 40 Gbps) | CE, KC, RoHS | Available |
| MV-GT1102P | PCI-E gen3 × 4, PCI-E gen3 × 8 | GigE Vision V2.0 | RJ45 × 2, supports PoE, RJ45 × 4, supports PoE | 2 at most (total bandwidth up to 20 Gbps), 4 at most (total bandwidth up to 40 Gbps) | CE, KC, RoHS | Available |
| MV-GX1008 | PCI-E gen2 × 8 | CoaXPress 1.0/1.1 | DIN 1.0/2.3 × 2 | 2 at most | RoHS, CE, KC | Available |
| MV-GE4002 | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 2 RJ45 × 4 | 2 at most 4 at most | CE, RoHS, KC | Available |
| MV-GE4004 | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 2 RJ45 × 4 | 2 at most 4 at most | CE, RoHS, KC | Available |
| MV-GE4004P | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 2 RJ45 × 4 | 2 at most 4 at most | CE, RoHS, KC | Available |
| MV-GE4002P | PCI-E gen2 × 4 | IEEE 802.3 | RJ45 × 2 RJ45 × 4 | 2 at most 4 at most | CE, RoHS, KC | Available |
| MV-GX1104 | PCI-E gen3 × 4 | CoaXPress 1.0/1.1 | DIN 1.0/2.3 × 4, DIN 1.0/2.3 × 2 | 4 at most, 2 at most | RoHS, CE, KC | Available |
| MV-GX1102 | PCI-E gen3 × 4 | CoaXPress 1.0/1.1 | DIN 1.0/2.3 × 4, DIN 1.0/2.3 × 2 | 4 at most, 2 at most | RoHS, CE, KC | Available |
