CL Series Line Scan Camera
The CL series covers 2K-16K pixels and equipped with GigE/ Camera Link/XoF interfaces, support a variety of ISP and algorithms that can fulfill various application needs of line scan cameras.
Diversified processing, flexible Acquisition

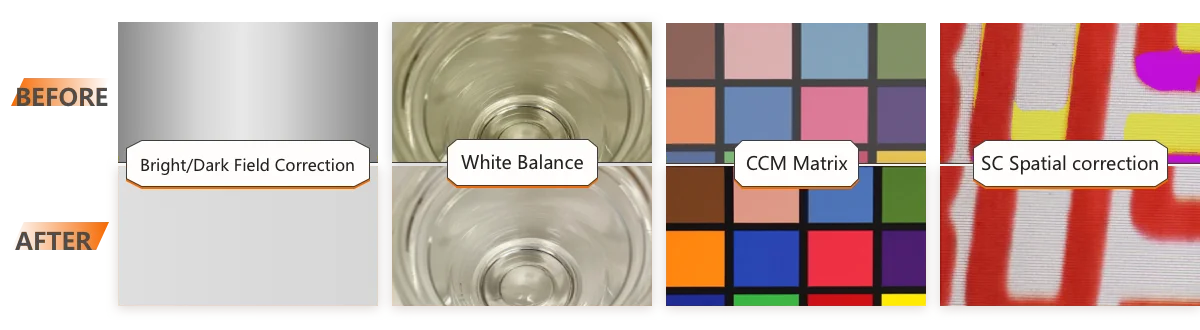

The CL camera supports various ISP functions: Flat field correction, Gamma, LUT, white balance, CCM, SC, etc. to help users obtain higher quality image data;
Despite timed exposure, a new acquisition method of trigger-width controlled exposure is added, and with external (soft/hard) trigger signals, it can flexibly adapt to external lighting conditions and exposure control needs.
High-Bandwidth Mode, high line frequency transmission
The High-Bandwidth Mode is equipped in the new GigE CL line scan camera. Breaking through the physical bandwidth of the gigabit network, the line frequency can been improved by 1.5-2 times, which provide users with a more cost-effective solution.
PRODUCT LIST
| Product Model | Resolution | Data Interface | Mono/Color | Certification | Product Status |
|---|---|---|---|---|---|
| MV-CL022-91GM | 2048 × 1 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL022-91GC | 2048 × 2 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL024-91GM | 2048 × 2 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL024-91GC | 2048 × 3 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL042-91GM | 4096 x 2 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL042-91GC | 4096 x 2 | GigE | Color | CE, RoHS, KC | Availabel |
| MV-CL042-91CM | 4096 x 2 | Camera Link | CE, RoHS, KC | Availabel | |
| MV-CL042-91CM | 4096 x 2 | Camera Link | CE, RoHS, KC | Availabel | |
| MV-CL042-91CC | 4096 x 2 | Camera Link | CE, RoHS, KC | Availabel | |
| MV-CL042-91CC | 4096 x 2 | Camera Link | CE, RoHS, KC | Availabel | |
| MV-CL042-91CM-V2 | 4096 x 2 | Camera Link | CE, RoHS, KC | Availabel | |
| MV-CL042-91FM | 4096 x 2 | LC fiber connector | Mono | CE, RoHS, KC | Availabel |
| MV-CL042-91FC | 4096 x 2 | LC fiber connector | CE, RoHS, KC | Availabel | |
| MV-CL043-A1GM-V2 | 4096 x 3 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL043-A1GC | 4096 x 3 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL044-91NM | 4096 x 4 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL044-91NC | 4096 x 3 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL081-41CM | 8192 x 1 | Camera Link | CE, RoHS, KC | Delisting Preparation | |
| MV-CL082-91F1M | 8192 x 2 | LC fiber connector | CE, RoHS, KC | Availabel | |
| MV-CL082-91F2M | 8192 x 2 | 2LC fiber connector | CE, RoHS, KC | Availabel | |
| MV-CL082-92GM | 8192 x 2 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL082-92CM | 8192 x 2 | Camera Link | CE, RoHS, KC | Availabel | |
| MV-CL083-91F2C | 8192 x 3 | 2LC Fiber Connector | CE, RoHS, KC | Availabel | |
| MV-CL083-92GC | 8192 x 3 | GigE | CE, RoHS, KC | Availabel | |
| MV-CL083-92CC | 8192 x 3 | Camera Link | CE, RoHS 2.0, KC | Availabel | |
| MV-CL084-91F2M | 8192 x 4 | 2LC Fiber Connector | CE, RoHS, KC, LC | Availabel | |
| MV-CL084-91Y2M | 8192 x 4 | CXP-10 with two Micro-BNC interfaces | CE, RoHS, KC | Availabel | |
| MV-CL161-41CM | 16384 x 1 | Camera Link | CE, RoHS, KC | Delisting Preparation | |
| MV-CL161-41CM | 16384 x 1 | Camera Link | CE, RoHS, KC | Delisting Preparation | |
| MV-CL162-91CM | 16384 x 2 | Camera Link | CE, RoHS, KC | Availabel | |
| MV-CL162-91F2M | 16384 x 2 | 2LC Fiber Connector | CE, RoHS, KC, UL | Availabel | |
| MV-CL166-91F2C | 16384 x 12 | 2LC Fiber Connector | CE, RoHS, KC, UL | Availabel | |
| MV-CL081-B0F2M | 8192 x 1 | 2LC Fiber Connector | Mono | CE, RoHS, KC | Availabel |
| MV-CL083-B0F2C | 8192 x 3 | 2LC Fiber Interface | Color | CE, RoHS, KC | Availabel |
