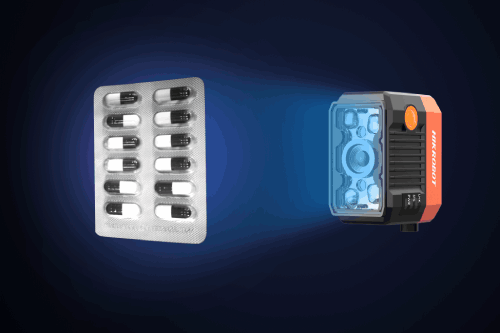

SC3000 Series Vision Sensor

Integrated with imaging, processing and communication functions, the SC3000 series has a more compact size and the vision detection tools lead to better performance. Equipped with a new SCMVS for on-site deployment and lower debugging requirements, bringing a more comprehensive and cost-effective choice for visual inspection!

Accessory

Red, blue, white and infrared light sources provide better imaging for products of different colors.
Visible light polarization mirror to filter glare interference.
SV series display interface box, providing a visual SC2000Pro real-time detection interface and statistics
Vertical and coaxial wiring supported, to adapt to more field applications

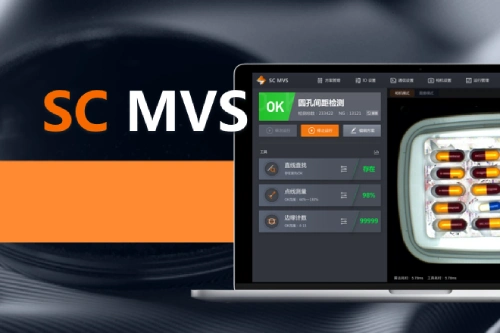

Easy-to-use Software

The SCMVS software equipped for SC3000 debugging shares a well-designed interface and useful vison tools, requiring less professionalism for engineers. It can also quickly filter suitable tools in the visualized display interface, and help to deploy real-time applications on site.

PRODUCT LIST

Product model	Resolution	Max. frame rate	Focal length	Mono/Color	Certification	Product status
MV-SC3013XM-08M-WBN	1216 × 1024	60.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3013XM-12M-WBN	1216 × 1024	60.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3013XM-16M-WBN	1216 × 1024	60.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3013XC-08M-WBN	1216 × 1024	60.0 fps	8 mm	Color	CE, KC	Available
MV-SC3013XC-12M-WBN	1216 × 1024	60.0 fps	12 mm	Color	CE, KC	Available
MV-SC3013XC-16M-WBN	1216 × 1024	60.0 fps	16 mm	Color	CE, KC	Available
MV-SC3030XM-08M-WBN	2048 × 1536	40.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3030XM-12M-WBN	2048 × 1536	40.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3030XM-16M-WBN	2048 × 1536	40.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3030XC-08M-WBN	2048 × 1536	40.0 fps	8 mm	Color	CE, KC	Available
MV-SC3030XC-12M-WBN	2048 × 1536	40.0 fps	12 mm	Color	CE, KC	Available
MV-SC3030XC-16M-WBN	2048 × 1536	40.0 fps	16 mm	Color	CE, KC	Available
MV-SC3050XM-08M-WBN	2432 × 2048	40.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3050XM-12M-WBN	2432 × 2048	40.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3050XM-16M-WBN	2432 × 2048	40.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3050XC-08M-WBN	2432 × 2048	40.0 fps	8 mm	Color	CE, KC	Available
MV-SC3050XC-12M-WBN	2432 × 2048	40.0 fps	12 mm	Color	CE, KC	Available
MV-SC3050XC-16M-WBN	2432 × 2048	40.0 fps	16 mm	Color	CE, KC	Available
MV-SC3050XM-08M-WBN-S	2432 × 2048	40.0 fps	8 mm	Mono	CE, KC	Available
MV-SC3050XM-12M-WBN-S	2432 × 2048	40.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3050XM-16M-WBN-S	2432 × 2048	40.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3050XC-08M-WBN-S	2432 × 2048	40.0 fps	8 mm	Color	CE, KC	Available
MV-SC3050XC-12M-WBN-S	2432 × 2048	40.0 fps	12 mm	Color	CE, KC	Available
MV-SC3050XC-16M-WBN-S	2432 × 2048	40.0 fps	16 mm	Color	CE, KC	Available
MV-SC3016M-06M-WBN	1408 × 1024	60.0 fps	6 mm	Mono	CE, KC	Available
MV-SC3016M-12M-WBN	1408 × 1024	60.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3016M-15M-WBN	1408 × 1024	60.0 fps	14.8 mm	Mono	CE, KC	Available
MV-SC3016C-06M-WBN	1408 × 1024	60.0 fps	6 mm	Color	CE, KC	Available
MV-SC3016C-12M-WBN	1408 × 1024	60.0 fps	12 mm	Color	CE, KC	Available
MV-SC3016C-15M-WBN	1408 × 1024	60.0 fps	14.8 mm	Color	CE, KC	Available
MV-SC3050M-08M-WBN	2368 × 1760	30.0 fps	8 mm	Mono	CE, KC	Delisting Preparation
MV-SC3050M-12M-WBN	2368 × 1760	30.0 fps	12 mm	Mono	CE, KC	Delisting Preparation
MV-SC3050M-16M-WBN	2368 × 1760	30.0 fps	16 mm	Mono	CE, KC	Delisting Preparation
MV-SC3050M-16M-WBN V4	2432 × 2048	50.0 fps	16 mm	Mono	CE, KC	Available
MV-SC3050M-12M-WBN V4	2432 × 2048	50.0 fps	12 mm	Mono	CE, KC	Available
MV-SC3050M-08M-WBN V4	2432 × 2048	50.0 fps	8 mm	Mono	CE, KC	Available
