SC2000 Series Vision Sensor
The SC2000 Series Vision Sensor combines lighting, image acquisition, processing, and communication functions into a compact integrated design, providing a complete vision inspection solution within a small form factor. It is specially designed for verification applications such as Y/N and P/N inspections, delivering reliable performance in error-proofing and production line inspection environments. These advanced machine vision solutions are available through JV Technosoft Pvt Ltd for industrial automation applications.
Comprehensive Error-proofing Detection Algorithm

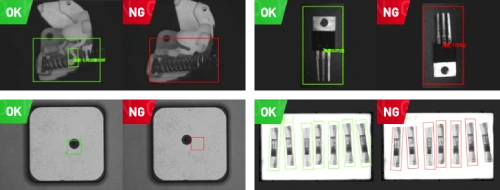

The SC2000 Series Vision Sensor supports multiple inspection functions including presence or absence detection, up/down verification, positioning, counting, and other error-proofing applications. Its advanced visual inspection tools help optimize inspection processes for components with different shapes and production requirements, simplifying implementation across manufacturing lines.
Positioning
presence/absence
counting
- Red, blue, and white lighting options are available to improve imaging performance for products with varying colors and surfaces.
- Visible light polarization mirrors help reduce glare and reflection interference during inspections.
- SV and VT series display products provide real-time visual detection interfaces along with statistical monitoring functions.
- The camera includes a 0.6 m cable for easier installation and convenient on-site operation.
The SC2000 Series is supported by SCMVS software, featuring an intuitive interface and practical vision tools that simplify configuration and operation. The visualized environment helps engineers quickly select suitable inspection tools while enabling efficient deployment of real-time industrial applications with reduced setup complexity.
PRODUCT LIST
| Product model | Resolution | Max. frame rate | Focal length | Mono/Color | Certification | Product status |
|---|---|---|---|---|---|---|
| MV-SC2004EM-06S-WBN-Mini | 704 × 540 | 60.0 fps | 6.72 mm | Mono | CE, KC | Available |
| MV-SC2016EM-06S-WBN-Mini | 1408 × 1024 | 60.0 fps | 6.72 mm | Mono | CE, KC | Available |
| MV-SC2004EM-08S-WBN | 704 × 540 | 60.0 fps | 8 mm | Mono | CE, KC | Available |
| MV-SC2004EM-12S-WBN | 704 × 540 | 60.0 fps | 12.4 mm | Mono | CE, KC | Available |
| MV-SC2004EM-15S-WBN | 704 × 540 | 60.0 fps | 14.8 mm | Mono | CE, KC | Available |
| MV-SC2004EC-08S-WBN | 704 × 540 | 60.0 fps | 8 mm | Color | CE, KC | Available |
| MV-SC2004EC-12S-WBN | 704 × 540 | 60.0 fps | 12.4 mm | Color | CE, KC | Available |
| MV-SC2004EC-15S-WBN | 704 × 540 | 60.0 fps | 14.8 mm | Color | CE, KC | Available |
| MV-SC2016EM-08S-WBN | 1408 × 1024 | 60.0 fps | 8 mm | Mono | CE, KC | Available |
| MV-SC2016EM-12S-WBN | 1408 × 1024 | 60.0 fps | 12.4 mm | Mono | CE, KC | Available |
| MV-SC2016EM-15S-WBN | 1408 × 1024 | 60.0 fps | 14.8 mm | Mono | CE, KC | Available |
| MV-SC2016EC-08S-WBN | 1408 × 1024 | 60.0 fps | 8 mm | Color | CE, KC | Available |
| MV-SC2016EC-12S-WBN | 1408 × 1024 | 60.0 fps | 12.4 mm | Color | CE, KC | Available |
| MV-SC2016EC-15S-WBN | 1408 × 1024 | 60.0 fps | 14.8 mm | Color | CE, KC | Available |
| MV-SC2023XC-05M-WBN | 1920 × 1280 | 75.0 fps | 5 mm | Color | CE, KC | Available |
| MV-SC2023XC-12M-WBN | 1920 × 1280 | 75.0 fps | 12 mm | Color | CE, KC | Available |
| MV-SC2023XC-16M-WBN | 1920 × 1280 | 75.0 fps | 16 mm | Color | CE, KC | Available |
| MV-SC2023XM-05M-WBN | 1920 × 1280 | 75.0 fps | 5 mm | Mono | CE, KC | Available |
| MV-SC2023XM-12M-WBN | 1920 × 1280 | 75.0 fps | 12 mm | Mono | CE, KC | Available |
| MV-SC2023XM-16M-WBN | 1920 × 1280 | 75.0 fps | 16 mm | Mono | CE, KC | Available |
