IDH9000 Series- Ultra-durable Industrial Handheld Code Reader
The IDH9000 Series Ultra-Durable Industrial Handheld Code Reader is engineered for demanding industrial environments, featuring dual megapixel global shutter image sensors capable of accurately reading both micro-sized and large depth-of-field barcodes. Its fully sealed and oil-resistant construction, combined with a rugged rubberized body, provides exceptional durability and allows the device to withstand drops from heights of up to 2.5 meters. These advanced industrial barcode reading solutions are available through JV Technosoft Pvt Ltd for automation and manufacturing applications.
Equipped with dual lens linkage, taking into account extremely small size and large depth of field

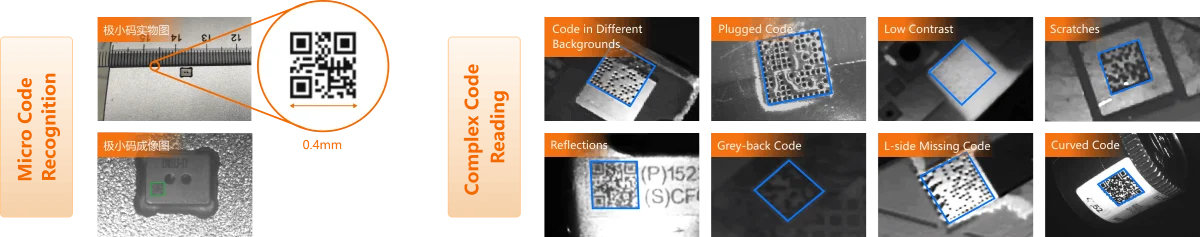

Designed for challenging DPM code reading tasks, the IDH9000 Series can efficiently decode small-diameter cylindrical codes, mirror-surface markings, and other difficult industrial barcodes commonly found in automotive parts, semiconductor manufacturing, aerospace, metalworking, and glass panel industries. Its telephoto lens enables precise reading of extremely small 0.4 mm QR codes, while the short-focus zoom lens enhances depth-of-field performance for greater scanning flexibility.
Comprehensive improvement in protection and durability levels, reducing total cost of ownership
Built for long-term operation in harsh industrial conditions, the scanner features IP67-rated dustproof and waterproof protection along with oil-resistant materials for reliable performance in environments exposed to water, dust, and heavy oil contamination. In addition, the device is equipped with high-durability buttons designed for up to 10 million key presses, significantly extending the product’s operational lifespan and reliability.
IP67/IP65
High IP Rating
ISO 16750
Automotive Oil-Resistant Material
2.5 m 50 times
Drop and Shock Resistance
100 million times
Extended Key Lifespan
Add Your Heading Text Here
PRODUCT LIST
| Product model | Resolution | Focal length | Product status | |
|---|---|---|---|---|
| MV-IDH9000/13DP/04RP/L | 1280 × 1024 | 4.3 mm | Available | |
| MV-IDH9000/13DP/04RP/U | 1280 × 1024 | 4.3 mm | Available | |
| MV-IDH9000/13HHD/16RP/L | 1280 × 1024 | Wide-angle lens: 4.3 mm Telephoto lens: 16 mm | Available | |
| MV-IDH9000/13HHD/16RP/U | 1280 × 1024 | Wide-angle lens: 4.3 mm Telephoto lens: 16 mm | Available | |
| New | MV-IDH9000B/13HHD/16RP | 1280 × 1024 | Available | |
| New | MV-IDH9000B/13HHD/16RP/US | 1280 × 1024 | Available | |
| New | MV-IDH9000B/SBASE/U | Available | ||
| New | MV-IDH9000B/SBASE/L | Available | ||
| New | MV-IDH9000B/13DP/04RP/US | 1280 × 1024 | Available | |
| New | MV-IDH9000B/13DP/04RP/LS | 1280 × 1024 | Available |
