[HIKROBOT Style] Light Controller Series

Hikrobot MV-LE series light controllers cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series by now with brand new family style design, stable and reliable performance, compatible with all light source product series.

Stable Performance, Easy to Control

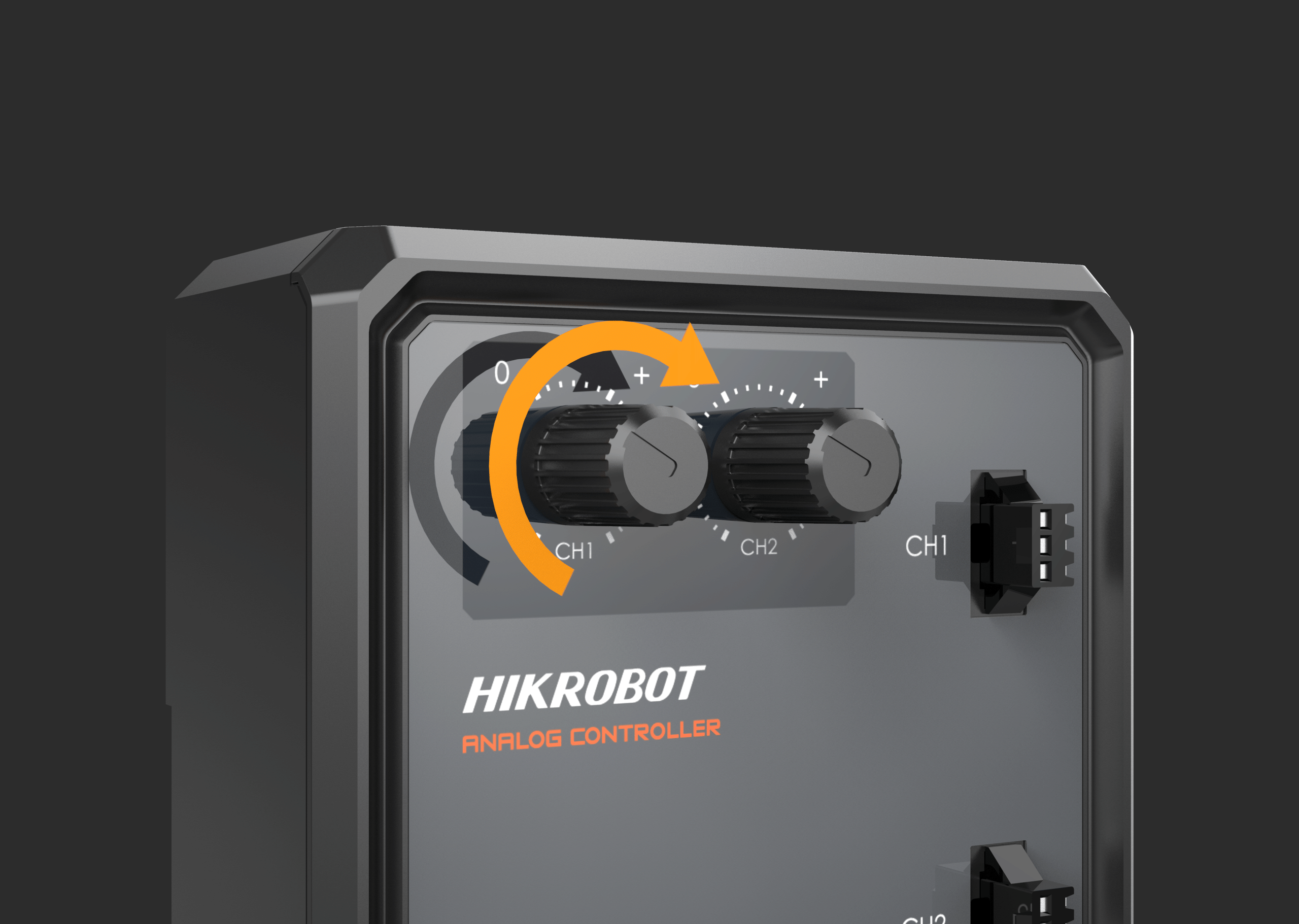

The analog series support knob stepless dimming, helping users to achieve rapid deployment; The digital series support precise button dimming, can also flexibly configure parameters through the communication interfaces; Support Always-On & Trigger mode; Equipped with unique “Timer” linkage function, can flexibly realize multi-optical signal synchronization linkage

fffdfd

Equipped with Professional Tools & Accessories

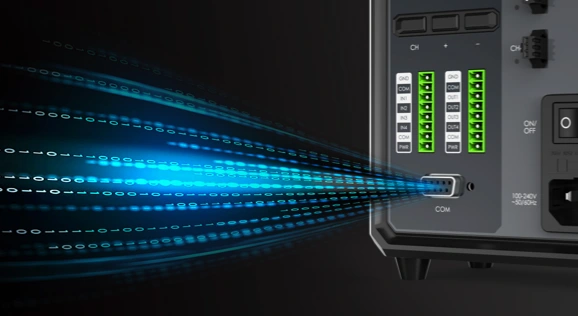

Support various parameter configuration methods: panel/serial port/network port Provide demo tools (no installation needed), no need for users to query the controller communication protocol; Support MVS/SDK integration, highly match the development habits of industrial cameras, can reduce the complexity of secondary development.

PRODUCT LIST

Product modelEnd A connectorEnd B connectorLengthCertificationProduct status
MV-LW-H-001-1-19M8A19M-8A19M-8A1 mRoHS 2.0Available
MV-LW-H-003-1-19M8A19M-8A19M-8A3 mRoHS 2.0Available
MV-LW-H-005-1-19M8A19M-8A19M-8A5 mRoHS 2.0Available
MV-LW-H-010-1-19M8A19M-8A19M-8A10 mRoHS 2.0Available
MV-LW-H-015-1-19M8A19M-8A19M-8A15 mRoHS 2.0Available
MV-LW-H-001-1-SSMR-03V-BSMR-03V-BC1 mRoHS 2.0Available
MV-LW-H-003-1-SSMR-03V-BSMR-03V-BC3 mRoHS 2.0Available
MV-LW-H-005-1-SSMR-03V-BSMR-03V-BC5 mRoHS 2.0Available
MV-LW-H-007-1-SSMR-03V-BSMR-03V-BC7 mRoHS 2.0Available
MV-LW-H-010-1-SSMR-03V-BSMR-03V-BC10 mRoHS 2.0Available
MV-LW-H-015-1-SSMR-03V-BSMR-03V-BC15 mRoHS 2.0Available
MV-LW-H-020-1-SSMR-03V-BSMR-03V-BC20 mRoHS 2.0Available
MV-LW-H-030-1-SSMR-03V-BSMR-03V-BC30 mRoHS 2.0Available
