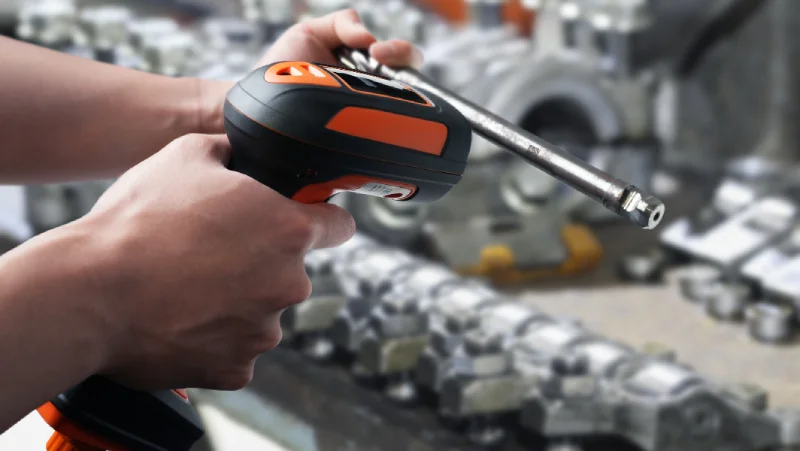

IDH7000 Series- Durable Industrial Handheld Code Reader
This rugged handheld scanner features a high-sensitivity megapixel global shutter sensor and a durable dual-color rubberized design for enhanced drop protection in industrial environments. Powered by AI deep-learning algorithms, it delivers reliable decoding of challenging DPM codes, making it suitable for applications in electronics, automotive parts, semiconductors, PCB manufacturing, metal processing, and glass panel industries.

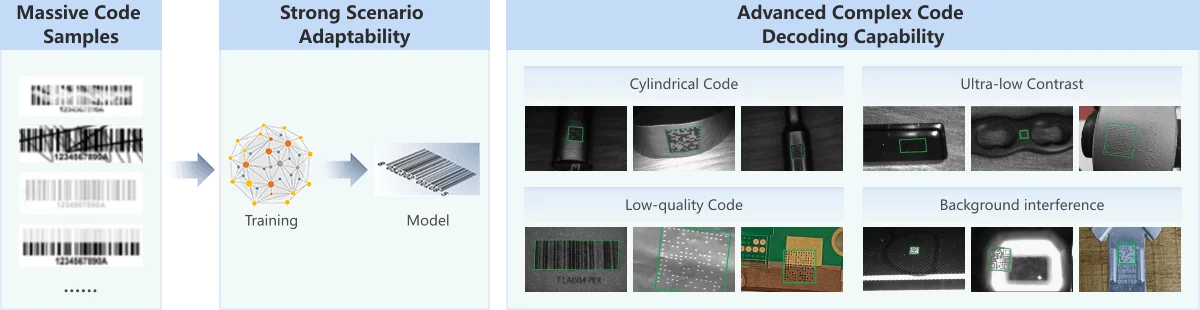

Built-in AI deep learning algorithm, excellent DPM decoding ability
Built using extensive industrial application samples, the system features a highly advanced decoding algorithm designed to accurately recognize and process even the most challenging barcodes in demanding production environments. These intelligent industrial scanning solutions are available through JV Technosoft Pvt Ltd for reliable automation applications.

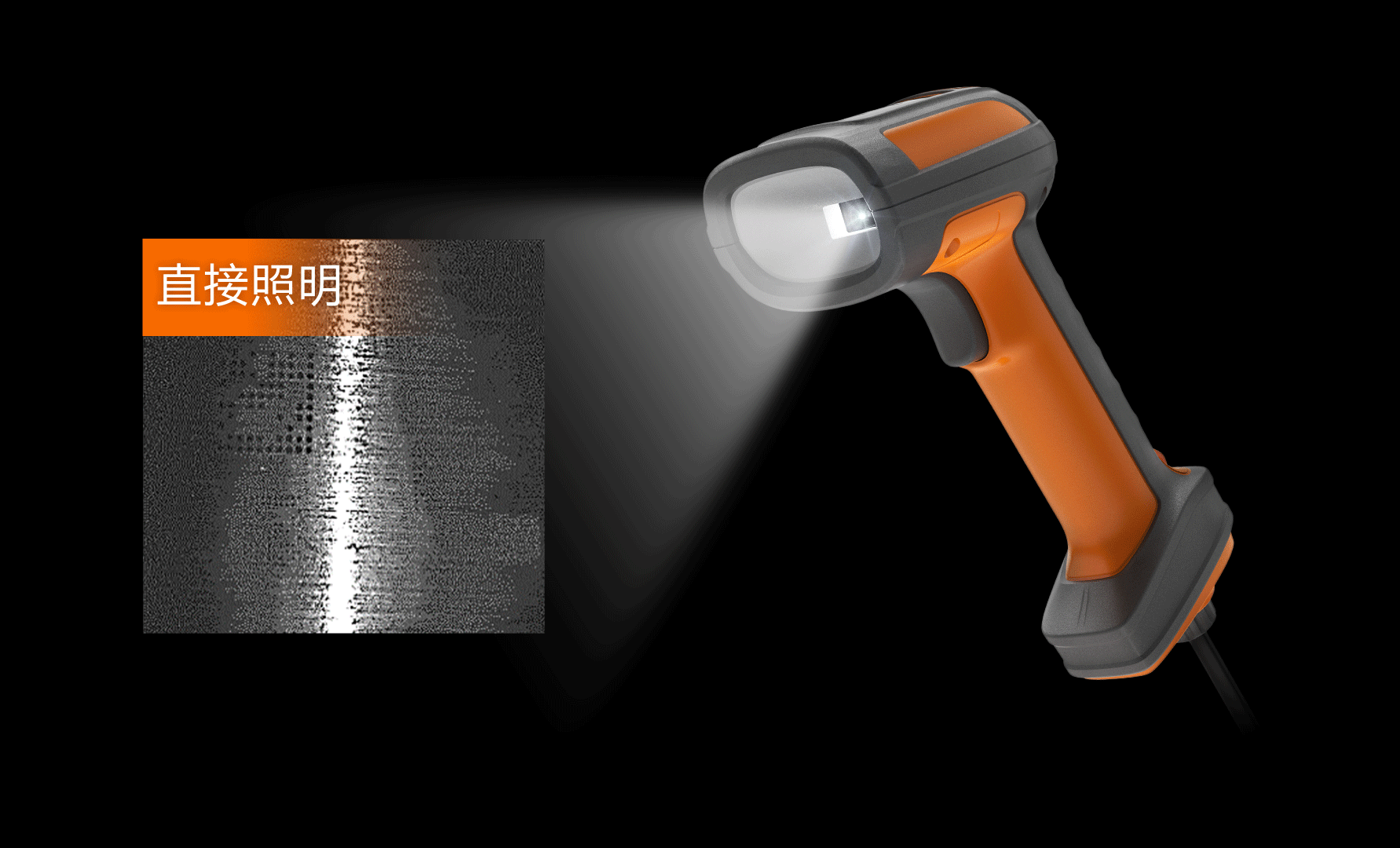

Dual lighting modes, automatically select the optimal one according to the scenario
The dual-lighting system combines diffuse and direct illumination technologies to efficiently handle difficult inspection scenarios involving metal surfaces, cylindrical objects, and transparent glass. The device can automatically adjust and select the most effective lighting method based on the working environment for improved scanning accuracy.
Durable design, suitable for harsh environment applications
PRODUCT LIST
| Product model | Resolution | Min. accuracy | Focal length | Product status |
|---|---|---|---|---|
| MV-IDH7000B/10SR/07RN | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000B/10SR/07RN/LS | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000B/10SR/07RN/US | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000B/10NR/07RN | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000B/10NR/07RN/LS | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000B/10NR/07RN/US | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000B/10HHD/07RN/LS | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000B/10HHD/07RN/US | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000B/10ER/12RN/US | 1280 × 800 | 10 mil | 12 mm | Available |
| MV-IDH7000P/10SR/07RN/L | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000P/10SR/07RN/U | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000P/10NR/07RN/L | 1280 × 800 | 3 mil | 6.7 mm | Available |
| MV-IDH7000P/10NR/07RN/U | 1280 × 800 | 3 mil | 6.7 mm | Available |
