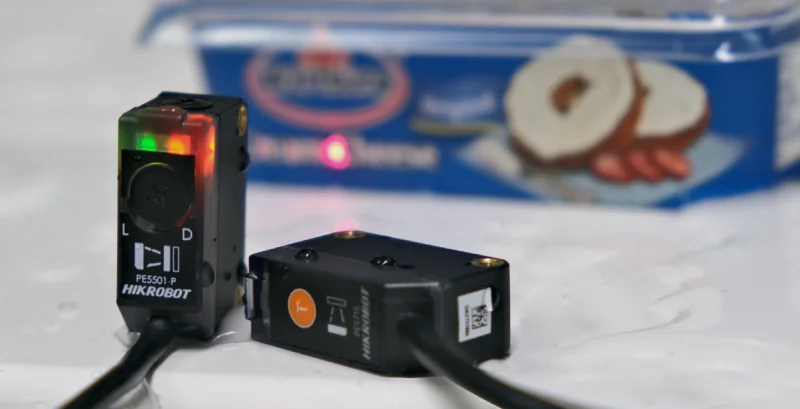

Photoelectric Sensor
The PE Series Built-In Amplifier Photoelectric Sensor is designed for reliable detection performance in industrial environments, featuring a rugged structure for stable installation and IP67-rated protection. Its advanced optical and electronic design enables long-range and stable detection even in complex operating conditions. These industrial sensing solutions are available through JV Technosoft Pvt Ltd for automation and machine control applications.
Excellent Protection
The Photoelectric sensor features IP67-rated dustproof and waterproof protection and maintains stable operation even when exposed to direct sunlight, high-frequency LED lighting, and strong electromagnetic interference, making it suitable for demanding industrial environments.
Standard Structure
Designed for easy integration, the PE Series provides a standard 25.4 mm mounting hole spacing along with metal M3 screw holes to ensure secure and stable installation across various industrial applications.
PRODUCT LIST
| Product model | Detecting distance | Light source | Output | Response time | Product status |
|---|---|---|---|---|---|
| MV-PE5101 | 15 m | Red LED 660 nm | NPN-NO/NC (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5101-P | 15 m | Red LED 660 nm | PNP-NO/NC (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5112 | 30 m | Infrared LED 850 nm | NPN-NO/NC (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5112-P | 30 m | Infrared LED 850 nm | PNP-NO/NC (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5301 | 0.1 m to 4 m | Red LED 650 nm | NPN (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5301-P | 0.1 m to 4 m | Red LED 650 nm | PNP (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5313 | 0.1 m to 1 m | Infrared LED 850 nm | NPN (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5313-P | 0.1 m to 1 m | Infrared LED 850 nm | PNP (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5501 | 5 mm to 100 mm | Red LED 650 nm | NPN (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5501-P | 5 mm to 100 mm | Red LED 650 nm | PNP (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5502 | 10 mm to 350 mm | Red LED 660 nm | NPN (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5502-P | 10 mm to 350 mm | Red LED 660 nm | PNP (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5602 | 300 mm | Red LED 660 nm | NPN (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5602-P | 300 mm | Red LED 660 nm | PNP (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5603 | 1000 mm | Red LED 660 nm | NPN (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5603-P | 1000 mm | Red LED 660 nm | PNP (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5715 | 50 mm to 5000 mm | Infrared laser 905 nm | NPN/PNP switch and light-on/dark-on switch | 500 μs/10 ms switch | Available |
| MV-PE5801 | 5 mm to 50 mm | Red LED 650 nm | NPN (supports light-on/dark-on switch) | ≤ 500 μs | Available |
| MV-PE5801-P | 5 mm to 50 mm | Red LED 650 nm | PNP (supports light-on/dark-on switch) | ≤ 500 μs | Available |
