CH Area Scan Camera

The CH Area Scan Camera Series is a premium industrial imaging solution developed for high-precision applications in industries such as electronic semiconductors, panel inspection, new energy, and advanced manufacturing. The series supports multiple data transmission interfaces including GigE, USB 3.0, 10 GigE, Camera Link, and CoaXPress for flexible industrial integration. JV Technosoft Pvt Ltd provides industrial vision solutions and integration support for demanding automation environments.

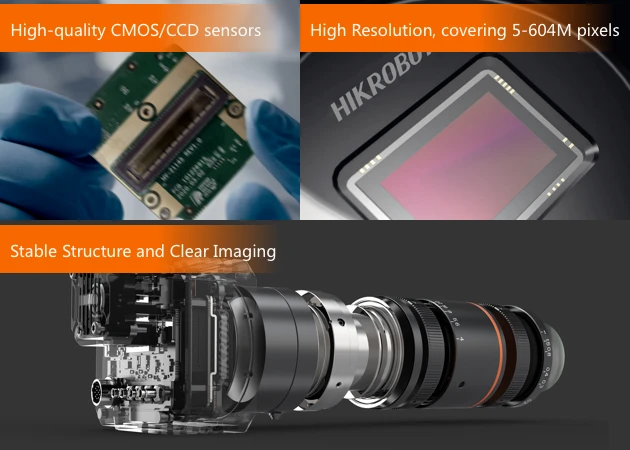

High-end CH area scan camera with high resolution coverage

This high-end CH area scan camera range offers resolutions from 5MP to 151MP, delivering exceptional image quality for applications requiring both high resolution and fast frame rates. Selected models are equipped with fan cooling or TEC cooling technology to support stable imaging performance under different operating conditions.

Backed by years of expertise in 100-level purification manufacturing processes, the series also delivers reliable quality standards and efficient product availability for industrial applications.

Rich ISP algorithm

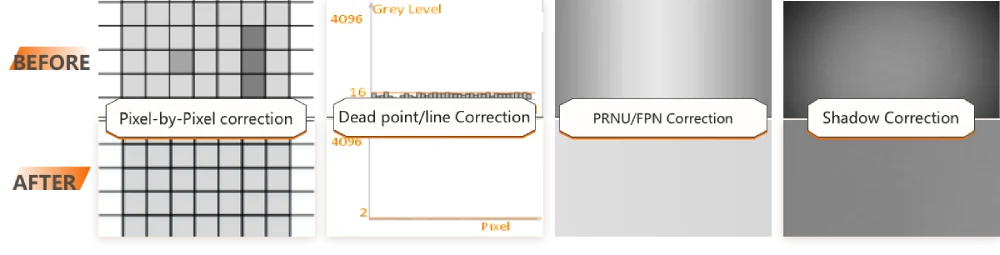

Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.

PRODUCT LIST

	Product model	Sensor model	Resolution	Max. frame rate	Data interface	Mono/Color	Certification	Product status
	MV-CH040-A0CM		2048 × 2048	180.0 fps	Camera Link	Mono	CE, RoHS, KC	Available
	MV-CH050-10UM	IMX250	2448 × 2048	74.1 fps	USB3.0	Mono	CE, RoHS, KC	Available
	MV-CH050-10UC	IMX250	2448 × 2048	74.1 fps	USB3.0	Color	CE, RoHS, KC	Available
	MV-CH050-10CM	IMX250	2432 × 2048	140.0 fps	Camera Link	Mono	CE, RoHS, KC	Available
	MV-CH050-10CC	IMX250	2432 × 2048	140.0 fps	Camera Link	Color	CE, RoHS, KC	Available
	MV-CH050-60UM	BSI	2448 × 2048	79.0 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
	MV-CH050-60NM	BSI	2448 × 2048	60.0 fps	GigE		CE, RoHS, KC	Available
	MV-CH050-60NC	BSI	2448 × 2048	60.0 fps	GigE		CE, RoHS, KC	Available
	MV-CH050-60UC	BSI	2448 × 2048	79.0 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
	MV-CH050-90XM-C-NN	GMAX2505	2592 × 2160	213.0 fps	CoaXPress	Mono	CE, RoHS, KC	Delisting Preparation
	MV-CH050-90XC-C-NN	GMAX2505	2592 × 2160	213.0 fps	CoaXPress	Color	CE, RoHS, KC	Delisting Preparation
	MV-CH050-90Y1M-NN	GMAX3405	2448 × 2048	164.0 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH050-90Y1C-NN	GMAX3405	2448 × 2048	164.0 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH050-90TM-C-NF	GMAX3405	2448 × 2048	163.4 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH050-90TC-C-NF	GMAX3405	2448 × 2048	163.4 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH089-10GM	IMX267	4096 × 2160	13.7 fps	GigE	Mono	CE, RoHS, KC	Delisting Preparation
	MV-CH089-10GC	IMX267	4096 × 2160	13.7 fps	GigE	Color	CE, RoHS, KC	Delisting Preparation
	MV-CH089-10UM	IMX267	4096 × 2160	32.0 fps	USB 3.0, compatible with USB 2.0		CE, RoHS, KC	Delisting Preparation
	MV-CH089-10UC	IMX267	4096 × 2160	32.0 fps	USB 3.0, compatible with USB 2.0		CE, RoHS, KC	Delisting Preparation
	MV-CH089-60GM V5	BSI	4096 × 2160	13.9 fps	GigE		CE, RoHS, KC	Available
	MV-CH089-60GC V5	BSI	4096 × 2160	13.9 fps	GigE		CE, RoHS, KC	Available
	MV-CH100-60GM	BSI	4096 × 2460	11.6 fps	GigE	Mono	CE, RoHS, KC	Available
	MV-CH100-60GC	BSI	4096 × 2460	11.6 fps	GigE	Color	CE, RoHS, KC	Available
	MV-CH100-60UM	BSI	4096 × 2460	36.0 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
	MV-CH100-60UC	BSI	4096 × 2460	36.0 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
	MV-CH120-10GM(EoL)	IMX304	4096 × 3000	9.4 fps	GigE		CE, RoHS, KC	Delisting Preparation
	MV-CH120-10GC(EoL)	IMX304	4096 × 3000	9.4 fps	GigE		CE, RoHS, KC	Delisting Preparation
	MV-CH120-10UM(EoL)	IMX304	4096 × 3000	23.1 fps	USB3.0		CE, RoHS, KC	Delisting Preparation
	MV-CH120-10UC(EoL)	IMX304	4096 × 3000	23.1 fps	USB3.0		CE, RoHS, KC	Delisting Preparation
	MV-CH120-10GM	IMX304	4096 × 3000	9.9 fps	GigE		CE, RoHS, KC	Available
	MV-CH120-10GC	IMX304	4096 × 3000	9.9 fps	GigE		CE, RoHS, KC	Available
	MV-CH120-10UM	IMX304	4096 × 3000	30.5 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
	MV-CH120-10UC	IMX304	4096 × 3000	30.5 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
	MV-CH120-60GM	BSI	4096 × 3000	9.5 fps	GigE	Mono	CE, RoHS, KC	Delisting Preparation
	MV-CH120-60GC	BSI	4096 × 3000	9.5 fps	GigE	Color	CE, RoHS, KC	Delisting Preparation
	MV-CH120-60UM	BSI	4096 × 3000	30.7 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Delisting Preparation
	MV-CH120-60UC	BSI	4096 × 3000	30.7 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Delisting Preparation
	MV-CH120-15TM-M58S-NF	IMX253	4096 × 3000	68.3 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH120-15TC-M58S-NF	IMX253	4096 × 3000	68.3 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH120-11UM	IMX304	4096 × 3000	30.3 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Delisting Preparation
	MV-CH120-11UC	IMX304	4096 × 3000	30.3 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Delisting Preparation
	MV-CH120-10CM	IMX253	4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80-bit)	69.8 fps	Camera Link	Mono	CE, RoHS, KC	Available
	MV-CH120-10CC	IMX253	4096 × 3000 (Base/Medium/Full), 3840 × 3000 (80-bit)	68.1 fps	Camera Link	Color	CE, RoHS, KC	Available
	MV-CH120-20GM	XGS12000	4096 × 3072	9.6 fps	GigE	Mono	CE, RoHS, KC	Available
	MV-CH120-20GC	XGS12000	4096 × 3072	9.6 fps	GigE	Color	CE, RoHS, KC	Available
	MV-CH120-20UM	XGS12000	4096 × 3072	28.0 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
	MV-CH120-20UC	XGS12000	4096 × 3072	28.0 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
	MV-CH120-40XM-M58S-NN	CMV12000	4096 × 3072	188.0 fps	CoaXPress		CE, RoHS, KC, UL	Available
	MV-CH120-60GM V5	BSI	4096 × 3000	10.0 fps	GigE	Mono	CE, RoHS, KC	Available
	MV-CH120-60GC V5	BSI	4096 × 3000	10.0 fps	GigE	Color	CE, RoHS, KC	Available
	MV-CH120-60UM V5	BSI	4096 × 3000	31.3 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
	MV-CH120-60UC V5	BSI	4096 × 3000	31.3 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
	MV-CH120-60TM-C-NF	BSI	4096 × 3072	80.0 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH120-60TC-C-NF	BSI	4096 × 3072	80.0 fps	10GigE	Color	CE, RoHS, KC	Available
New	MV-CH120-60VM	BSI	4096 × 3000	60.2 fps	USB 3.0, compatible with USB 2.0		CE, RoHS	Available
New	MV-CH120-60VC	BSI	4096 × 3000	60.2 fps	USB 3.0, compatible with USB 2.0		CE, RoHS	Available
	MV-CH120-90TM-C-NF	GMAX3412	4096 × 3072	94.0 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH120-90Y1M-NH	GMAX3412	4096 × 3072	93.9 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH120-90Y1M-NN	GMAX3412	4096 × 3072	93.9 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH120-90Y1C-NN	GMAX3412	4096 × 3072	93.9 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH120-90Y1C-NH	GMAX3412	4096 × 3072	93.9 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH120-90X2M-C-NN	GMAX3412	4096 × 3072	95.0 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH120-90Y2M-C-NN	GMAX3412	4096 × 3008	149.0 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH120-90X2C-C-NN	GMAX3412	4096 × 3072	95.0 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH120-90Y2C-C-NN	GMAX3412	4096 × 3008	149.0 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH123-10UM	IMX545	4096 × 3000	31.5 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
	MV-CH123-10UC	IMX545	4096 × 3000	31.5 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
	MV-CH140-60GM	BSI	4708 × 2824	9.0 fps	GigE	Mono	CE, RoHS, KC	Available
	MV-CH140-60UM	BSI	4708 × 2824	27.0 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS	Available
	MV-CH140-60GC	BSI	4708 × 2824	9.0 fps	GigE	Color	CE, RoHS, KC	Available
	MV-CH140-90YM-M58S-NF	Gsprint	4608 × 3072	339.0 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH140-90YC-M58S-NF	Gsprint	4608 × 3072	339.0 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH160-60GM	HK	4000 × 4000	7.25 fps	GigE	Mono	CE, RoHS, KC	Delisting Preparation
	MV-CH210-90YM-M58S-NN	Gsprint4521	5120 × 4096	222.0 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH210-90YC-M58S-NN	Gsprint4521	5120 × 4096	222.0 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH210-90Q2M-M58S-NF	Gsprint4521	5120 × 4096	541.0 fps	QSFP+ × 2	Mono	RoHS, CE, KC	Available
	MV-CH240-10TM-C-NN	IMX540	5328 × 4600	35.1 fps	10GigE		CE, RoHS, KC	Available
	MV-CH250-20XM-M58S-NN	PYTHON25K	5120 × 5120	80.0 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH250-20CM-M58S-NN	PYTHON25K	5120 × 5120	31.3 fps	Camera Link		CE, RoHS, KC	Available
	MV-CH250-25TM-M58S-NF	PYTHON25K	5120 × 5120	40.0 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH250-25TM-F-NF	PYTHON25K	5120 × 5120	40.0 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH250-25TC-M58S-NF	PYTHON25K	5120 × 5120	40.0 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH250-60UM	BSI	5120 × 5120	14.8 fps	USB3.0	Mono	CE, RoHS, KC	Available
	MV-CH250-60UC	BSI	5120 × 5120	14.8 fps	USB3.0	Color	CE, RoHS, KC	Available
	MV-CH250-60TM-M58S-NF		5120 × 5120	31.7 fps	10GigE		CE, RoHS, KC	Available
	MV-CH250-90GM	GMAX0505	5120 × 5120	4.5 fps	GigE	Mono	CE, RoHS, KC	Available
	MV-CH250-90UN V4	GMAX0505	5120 × 5120	14.0 fps	USB3.0	Mono	CE, RoHS, KC	Available
	MV-CH250-90TM-C-NF	GMAX0505	5120 × 5120	41.5 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH250-90TC-C-NF	GMAX0505	5120 × 5120	41.5 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH250-90GC	GMAX0505	5120 × 5120	4.5 fps	GigE	Color	CE, RoHS, KC	Available
	MV-CH250-90GN	GMAX0505	5120 × 5120	4.5 fps	GigE	NIR	CE, RoHS, KC	Available
	MV-CH250-90UM V4	GMAX0505	5120 × 5120	14.0 fps	USB3.0	Mono	CE, RoHS, KC	Available
	MV-CH250-90UC V4	GMAX0505	5120 × 5120	14.0 fps	USB3.0	Color	CE, RoHS, KC	Available
	MV-CH250-90TM-M58S-NF	GMAX0505	5120 × 5120	41.5 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH250-90TC-M58S-NF	GMAX0505	5120 × 5120	41.5 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH250-90XM-C-NN	GMAX0505	5120 × 5120	41.5 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH250-90XC-C-NN	GMAX0505	5120 × 5120	41.5 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH250-90YM-M58S-NN	GMAX0505	5120 × 5120	150.0 fps	CoaXPress		CE, RoHS, KC, UL	Available
	MV-CH250-90YM-C-NN	GMAX0505	5120 × 5120	150.0 fps	CoaXPress		CE, RoHS, KC, UL	Available
	MV-CH250-90YC-C-NN	GMAX0505	5120 × 5120	150.0 fps	CoaXPress		CE, RoHS, KC, UL	Available
	MV-CH250-90YC-M58S-NN	GMAX0505	5120 × 5120	150.0 fps	CoaXPress		CE, RoHS, KC, UL	Available
	MV-CH250-90YN-C-NN	GMAX0505	5120 × 5120	150.0 fps	CoaXPress		CE, RoHS, KC, UL	Available
	MV-CH250-90VM	GMAX0505	5120 × 5120	30.0 fps	USB 3.0, compatible with USB 2.0	Mono	CE, RoHS, KC	Available
	MV-CH250-90VC	GMAX0505	5120 × 5120	30.0 fps	USB 3.0, compatible with USB 2.0	Color	CE, RoHS, KC	Available
	MV-CH250-92TM-C-NF V2	GMAX0505	5120 × 5120	41.5 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH310-10GM-M58S-NF	IMX342	6464 × 4852	3.9 fps	GigE	Mono	CE, RoHS, KC	Available
	MV-CH310-10GM-F-NF	IMX342	6464 × 4852	3.9 fps	GigE	Mono	CE, RoHS, KC	Available
	MV-CH310-10GC-F-NF	IMX342	6464 × 4852	3.9 fps	GigE	Color	CE, RoHS, KC	Available
	MV-CH310-10GC-M58S-NF	IMX342	6464 × 4852	3.9 fps	GigE	Color	CE, RoHS, KC	Available
	MV-CH310-10TM-M58S-NN	IMX342	6464 × 4852	17.2 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH310-10TC-M58S-NN	IMX342	6464 × 4852	17.2 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH500-90TM-F-NF	GMAX	7008 × 7000	15.5 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH500-90TM-M58S-NF	GMAX	7008 × 7000	15.5 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH500-90TC-M58S-NF	GMAX	7008 × 7000	15.5 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH610-10TM-F-TF	IMX455	9568 × 6380	17.9 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH610-10TC-F-TF	IMX455	9568 × 6380	17.9 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH650-90TM-M58S-NF	GMAX3265	9344 × 7000	17.2 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH650-90TC-M58S-NF	GMAX3265	9344 × 7000	17.2 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH650-90TM-F-NF	GMAX3265	9344 × 7000	17.2 fps	10GigE	mono	CE, RoHS, KC	Available
	MV-CH650-90TC-F-NF	GMAX3265	9344 × 7000	17.2 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH650-90XM-M58S-NF	GMAX3265	9344 × 7000	31.5 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH650-90XM-F-NF	GMAX3265	9344 × 7000	31.5 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH650-90XC-M58S-NF	GMAX3265	9344 × 7000	31.5 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH650-90YM-M58S-NN	GMAX3265	9344 × 7000	71.0 fps	CoaXPress		CE, RoHS, KC	Available
	MV-CH650-90YC-M58S-NN	GMAX3265	9344 × 7000	71.0 fps	CoaXPress		CE, RoHS, KC	Available
	MV-CH650-90YC-F-NN	GMAX3265	9344 × 7000	71.0 fps	CoaXPress		CE, RoHS, KC	Available
	MV-CH650-90YM-M58S-NN V2	GMAX3265	9344 × 7000	71.0 fps	CoaXPress	Mono	CE, RoHS, KC, UL	Available
	MV-CH1010-10CM-M72-NF	IMX461	11648 × 8740	8.1 fps	Camera Link	Mono	CE, RoHS, KC	Available
	MV-CH1010-10CM-M72-TF	IMX461	11648 × 8740	8.1 fps	Camera Link	Mono	CE, RoHS, KC	Available
	MV-CH1030-90TM-M58S-NN	GMAX32103	11264 × 9200	11.0 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH1030-90TC-M58S-NN	GMAX32103	11264 × 9200	11.0 fps	10GigE	Color	CE, RoHS, KC	Available
	MV-CH1510-11XM-M72-TF	IMX411	14208 × 10640	6.2 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH1510-10XM-M72-NF	IMX411	14208 × 10640	6.2 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH1510-11XC-M72-TF	IMX411	14208 × 10640	6.2 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH1510-10XC-M72-NF	IMX411	14208 × 10640	6.2 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH1510-10FM-M72-TF	IMX411	14208 × 10640	6.2 fps	10GigE	Mono	CE, RoHS, KC	Available
	MV-CH1510-10XM-M72-TF V2	IMX411	14192 × 10640	6.2 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH1510-10XC-M72-TF V2	IMX411	14192 × 10640	6.2 fps	CoaXPress	Color	CE, RoHS, KC	Available
	MV-CH6040-10XM-M72-NF	IMX411	28416 × 21280	1.45 fps	CoaXPress	Mono	CE, RoHS, KC	Available
	MV-CH120-10UM(TK)	IMX304	4096 × 3000	23.1 fps	USB3.0	Mono	CE, RoHS, KC	Available
New	MV-CH250-92TC-C-NF V2	GMAX0505	5120 × 5120	41.5 fps	10GigE	Color	CE, RoHS, KC	Available
New	MV-CH140-90XM-M58S-NN	Gsprint	4608 × 3072	169.0 fps	CoaXPress	Mono	CE, RoHS, KC	Available
