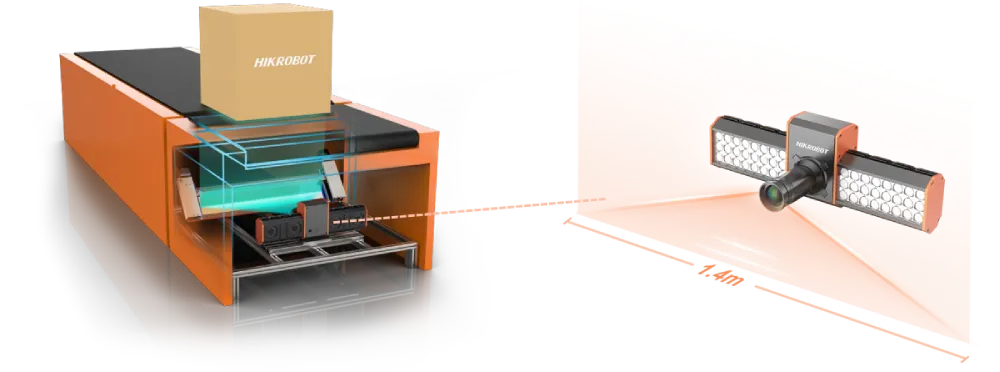

ID7000 Series Logistics Code Reader
The ID7000 Series Logistics Code Reader is an advanced embedded-platform barcode reading solution developed specifically for bottom-side logistics scanning applications. Designed to meet the operational demands of the logistics industry, the system features an integrated structure with 48 LED light sources, enabling ultra-wide barcode coverage and efficient high-speed package identification on conveyor systems.
Integrated design
Its fully integrated design combines image acquisition, data processing, and result output into a single compact system for improved operational efficiency. The illumination system includes 48 strategically positioned LED lights along with four cooling fans to ensure stable performance and reliable operation in continuous industrial logistics environments.
Wide Coverage
Equipped with a built-in linear sensor offering an 8K horizontal resolution, the ID7000 Series Logistics Code Reader delivers high-precision barcode reading across large conveyor belt areas. When installed beneath a logistics conveyor using a dedicated reflector, the system can cover conveyor widths of up to 1.2 meters at 10 mil resolution, making it ideal for wide-area package scanning and automated logistics operations. These advanced logistics code reading solutions are available through JV Technosoft Pvt Ltd for industrial automation and smart logistics systems.
PRODUCT LIST
| Product model | Resolution | Max. reading speed | Max. frame rate | Mono/Color | Certification | Product status |
|---|---|---|---|---|---|---|
| MV-ID6120PM-00C-NNG | 4096 × 3072 | 84 codes/sec | 28.0 fps | Mono | CE, RoHS | Available |
| MV-ID6200M-00C-NNG | 5440 × 3648 | 60 codes/sec | 20.0 fps | Mono | CE, RoHS | Available |
| MV-ID6200EM-00C-NNG | 5440 × 3648 | 36 codes/sec | 12.0 fps | Mono | CE, RoHS | Available |
